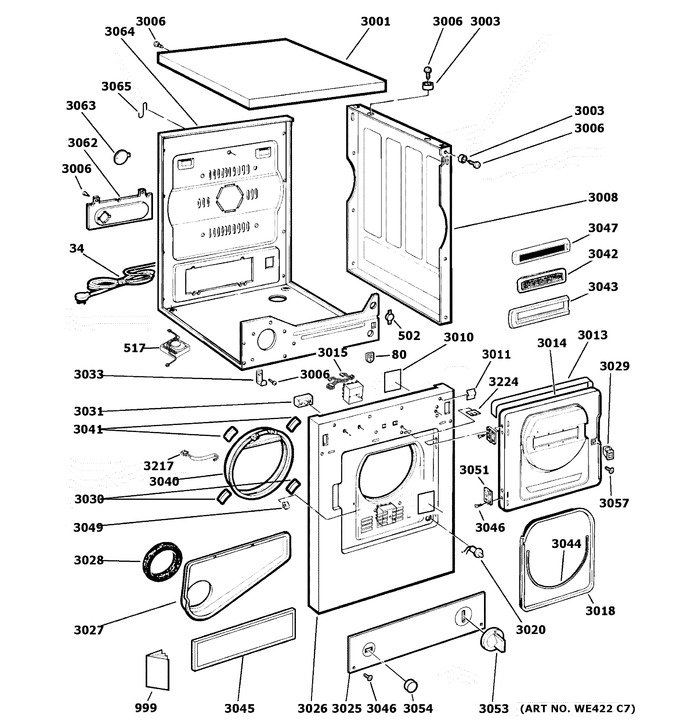

Backsplash, Cabinet & Front Panel
Blower & Motor
Drum
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 34 | WW02F00123 | Cord Set (Replaces: WE26M337) |
|
$ 48.04 | |||||
| 80 | WE4M255 | Resistor |
|
- | |||||
| 502 | WE4M293 | Thermostat Ambiant |
|
- | |||||
| 517 | WE08X29197 | Main Harness |
|
- | |||||
| 999 | 31-16710 | Installation Instructions |
|
- | |||||
| 999 | 49-90284-1 | Pm Owners Manual |
|
- | |||||
| 3001 | WE20X20491 | Cover Top |
|
- | |||||
| 3003 | WE1M1073 | Guide |
|
- | |||||
| 3006 | WE2M97 | Scr |
|
- | |||||
| 3008 | WE20M533 | Side Panel |
|
- | |||||
| 3010 | WE1M398 | Shield Control |
|
- | |||||
| 3011 | WE2M95 | Speed Clip |
|
- | |||||
| 3013 | WW02L00171 | Door Outer White (Replaces: WE10M86) |
|
$ 61.04 | |||||
| 3014 | WE10M138 | Inner Door (white) |
|
- | |||||
| 3015 | WE15X23895 | Main Harness And Timer |
|
- | |||||
| 3018 | WW03L00119 | Door Gasket (Replaces: WE9M16) |
|
Immediately | $ 24.11 | ||||
| 3020 | WE4M415 | Door Switch |
|
- | |||||
| 3025 | WE19M1305 | Switch Trim |
|
- | |||||
| 3026 | WE20M532 | Panel Front |
|
- | |||||
| 3027 | WE14X23276 | Trap Duct |
|
- | |||||
| 3028 | WE9X38 | Felt Seal As |
|
$ 58.83 | |||||
| 3029 | WE1M536 | Latch |
|
- | |||||
| 3030 | WE03X20492 | Bearing Slide |
|
- | |||||
| 3031 | WW02L00024 | Switch Pts (Replaces: WE4M416) |
|
Immediately | $ 15.28 | ||||
| 3033 | WE1M1095 | Bracket Front |
|
- | |||||
| 3040 | WW01F01485 | Bearing Drum & Felt Kit (Replaces: WE25X20096) |
|
Immediately | $ 97.67 | ||||
| 3041 | WE03X20493 | Bearing Slide |
|
- | |||||
| 3042 | WE18X20437 | Lint Trap Assembly |
|
- | |||||
| 3043 | WE01X25915 | Slide |
|
- | |||||
| 3044 | WW02L00178 | Gasket (Replaces: WE9M17) |
|
Immediately | $ 19.56 | ||||
| 3045 | WE01X20494 | Insulation Cabinet |
|
- | |||||
| 3046 | WE2M302 | Scr 8-15 B Pnq2 7/8 |
|
- | |||||
| 3047 | WE01X25914 | Grid |
|
- | |||||
| 3049 | WW02A00004 | Strike Door (Replaces: WE1X1192) |
|
Immediately | $ 3.97 | ||||
| 3051 | WW02L00028 | Hinge (Replaces: WE1M1033) |
|
Immediately | $ 9.92 | ||||
| 3053 | WW02F00177 | Knob Asm Dryer (Replaces: WE1X1263) |
|
Immediately | $ 17.86 | ||||
| 3054 | WE49X27535 | Kit Knop And Clip Asm |
|
- | |||||
| 3057 | WZ5X158 | Screw Ground |
|
- | |||||
| 3062 | WE1M194 | Knockout |
|
- | |||||
| 3063 | WE1M225 | Cover Knockout |
|
$ 729.98 | |||||
| 3064 | WE20M534 | Chassis Base |
|
- | |||||
| 3065 | WE1M155 | Clip Cordset |
|
- | |||||
| 3217 | WE15X20100 | Harness Fct Thermo |
|
- | |||||
| 3224 | WE1X762 | Clip Grounding |
|
- |
