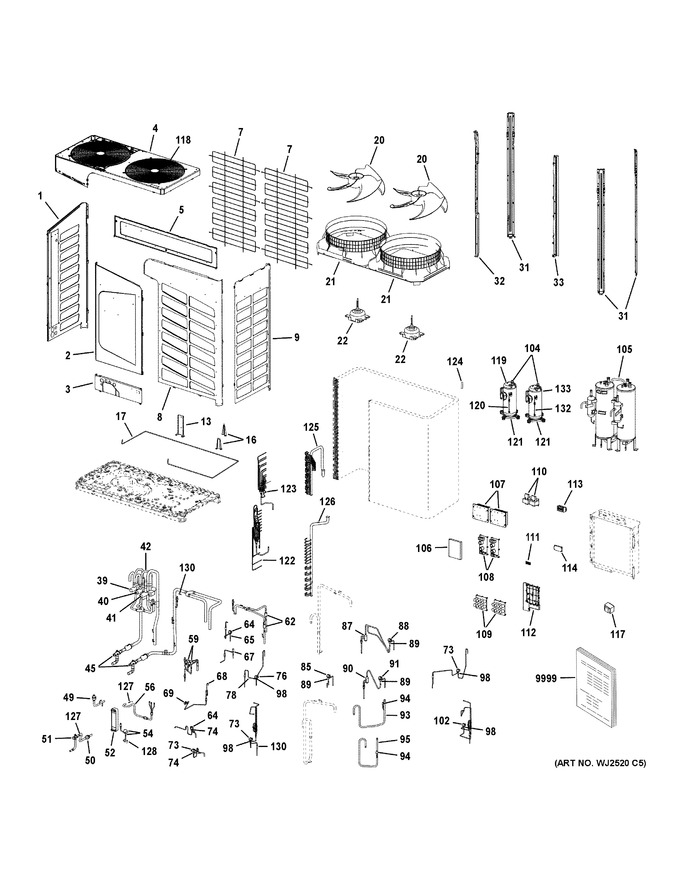

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Optional Accessories
Room Air Conditioner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP71X33992 | Left Side Panel |
|
- | |||||
| 2 | WP71X33974 | Service Panel |
|
- | |||||
| 3 | WP71X33953 | Lower Front Panel |
|
- | |||||
| 4 | WP76X33984 | Left Top Cover |
|
- | |||||
| 5 | WP71X33975 | Back Guard |
|
- | |||||
| 7 | WP71X33978 | Grille |
|
- | |||||
| 8 | WP71X33979 | Right Front Panel |
|
- | |||||
| 9 | WP71X33980 | Right Side Panel |
|
- | |||||
| 13 | WP65X26747 | Brackett |
|
- | |||||
| 16 | WP65X26748 | Brackett |
|
- | |||||
| 17 | WP27X34005 | Base Pan Heater |
|
- | |||||
| 20 | WP73X33982 | Fan Blade |
|
- | |||||
| 21 | WP76X33983 | Fan Shroud |
|
- | |||||
| 22 | WP94X28235 | Outdoor Fan Motor |
|
- | |||||
| 31 | WP65X33981 | Support Column |
|
- | |||||
| 32 | WP65X33976 | Door Support Column |
|
- | |||||
| 33 | WP65X33973 | Back Column |
|
- | |||||
| 39 | WP26X26955 | Reversing Valve |
|
- | |||||
| 40 | WP26X33986 | 4-way Valve Assembly |
|
- | |||||
| 41 | WP26X27073 | Reversing Valve |
|
- | |||||
| 42 | WP53X33991 | 4-way Valve Tube |
|
- | |||||
| 45 | WP53X33987 | Service Valve & Strainer Assembly |
|
- | |||||
| 49 | WP53X34006 | Main Eev Strainer Assembly |
|
- | |||||
| 50 | WP53X33990 | Liquid Outlet Strainer Assembly |
|
- | |||||
| 51 | WP26X34004 | Stop Valve |
|
- | |||||
| 52 | WP65X33989 | Plate Heat Exchanger |
|
- | |||||
| 54 | WJ53X22639 | Electronic Expansion Valve |
|
- | |||||
| 56 | WP53X34007 | Subcooling Outlet Strainer Assembly |
|
- | |||||
| 59 | WP26X34002 | Main Eev Coil Assembly |
|
- | |||||
| 62 | WP26X26977 | Check Valve |
|
- | |||||
| 64 | WP26X26967 | Sv1 Solenoid Coil |
|
- | |||||
| 65 | WP26X26956 | Sv1 Solenoid Valve Body |
|
- | |||||
| 67 | WP26X26976 | Unloading Valve |
|
- | |||||
| 68 | WP53X33996 | Gas Injection Tube |
|
- | |||||
| 69 | WJ27X22626 | Charging Port |
|
$ 15.06 | |||||
| 73 | WP26X26969 | Sv9 Solenoid Coil |
|
- | |||||
| 74 | WP26X26993 | Sv14 Solenoid Valve Body |
|
- | |||||
| 76 | WP26X26965 | Sv10 Solenoid Coil |
|
- | |||||
| 78 | WP53X34001 | C1 Oil Balance Tubing Assembly |
|
- | |||||
| 85 | WP26X26966 | Solenoid Coil |
|
- | |||||
| 87 | WP53X33997 | C1 Muffler Injection Assembly |
|
- | |||||
| 88 | WP26X26968 | Sv7 Solenoid Coil |
|
- | |||||
| 89 | WP26X26958 | Solenoid Valve Body |
|
- | |||||
| 90 | WP53X33999 | C2 Muffler Injection Inlet |
|
- | |||||
| 91 | WP26X26970 | Sv8 Solenoid Coil |
|
- | |||||
| 93 | WP53X33994 | C1 Discharge Pipe Assembly |
|
- | |||||
| 94 | WP26X26962 | High Pressure Switch |
|
- | |||||
| 95 | WP53X33995 | C2 Discharge Pipe Assembly |
|
- | |||||
| 98 | WP26X26957 | Solenoid Valve Body |
|
- | |||||
| 102 | WP26X26953 | Sv181 Solenoid Coil |
|
- | |||||
| 104 | WP98X28244 | Compressor |
|
- | |||||
| 105 | WP53X34003 | Accumulator/oil Seperator Asssembly |
|
- | |||||
| 106 | WP26X34013 | Power Control Board |
|
- | |||||
| 107 | WP26X28254 | Invert Drive With Heat Sink |
|
- | |||||
| 108 | WP26X28237 | Power Filter Board |
|
- | |||||
| 109 | WP26X28238 | Capacitor Board |
|
- | |||||
| 110 | WP26X26032 | Reactor |
|
- | |||||
| 111 | WP26X26734 | Communication Terminal Block |
|
- | |||||
| 112 | WP76X26750 | Plastic Base |
|
- | |||||
| 113 | WP26X26034 | Power Supply Terminal Block |
|
- | |||||
| 114 | WP26X33434 | Pcb Io Expansion Board |
|
- | |||||
| 117 | WP26X28233 | Power Transformer |
|
- | |||||
| 118 | WP71X33977 | Top Grille |
|
- | |||||
| 119 | WP26X26971 | Td Sensor |
|
- | |||||
| 120 | WP26X26974 | Toil Sensor |
|
- | |||||
| 121 | WP27X26752 | Compressor Heater |
|
- | |||||
| 122 | WP26X26027 | Tdef Sensor |
|
- | |||||
| 123 | WP26X26754 | Tdef2 Sensor |
|
- | |||||
| 124 | WP26X26756 | Tao Sensor |
|
- | |||||
| 125 | WP26X26753 | Toci1 Sensor |
|
- | |||||
| 126 | WP26X26755 | Toci2 Sensor |
|
- | |||||
| 127 | WP26X26972 | Tsco Sensor |
|
- | |||||
| 128 | WP26X26973 | Tsci Sensor |
|
- | |||||
| 130 | WP53X34008 | Strainer |
|
- | |||||
| 132 | WP26X26975 | Toil Sensor |
|
- | |||||
| 133 | WP26X26964 | Td Sensor |
|
- | |||||
| 9999 | 31-5000573 | Pm Install Instructions |
|
- |
