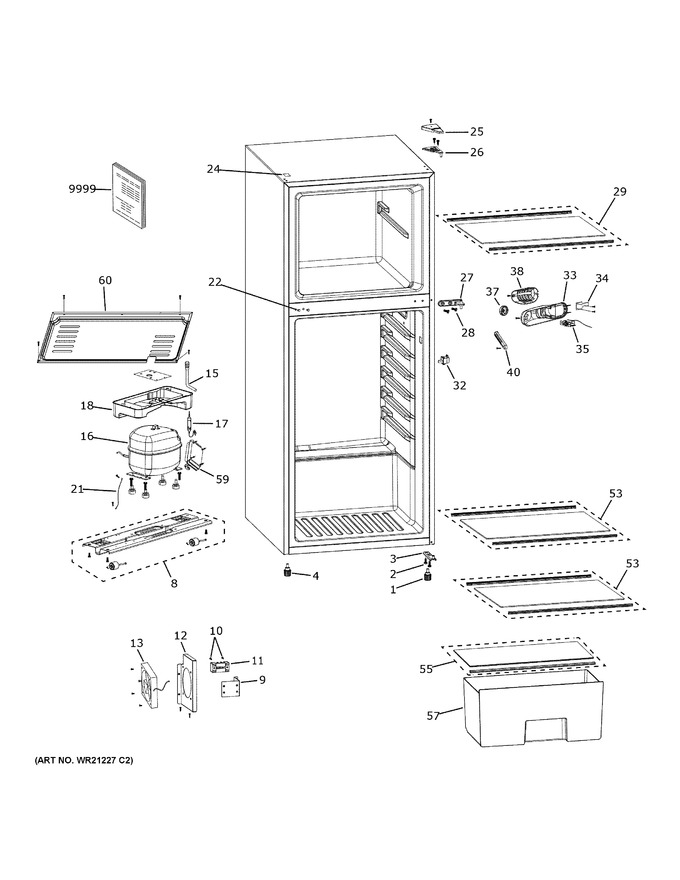

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WR01X29272		Leveling Leg Left		Appelez-nous	-
2	WR01X10829		Screw		Appelez-nous	-
3	WR13X10903		Bottom Hinge		Appelez-nous	-
4	WR01X29273		Leveling Leg Right		Appelez-nous	-
8	WR17X32533		Compressor Base		Appelez-nous	-
9	WR02X32534		Terminal Block Mounting Plate		Appelez-nous	-
10	WR01X36845		Screw		Appelez-nous	-
11	WR55X32535		Terminal Block		Appelez-nous	-
12	WR02X32734		Fan Support		Appelez-nous	-
13	WR60X32537		Dc Fan		Appelez-nous	-
15	WR87X30876		R600 Process Valve W/ Red Cap		Appelez-nous	-
16	WR87X43762		Compressor		Appelez-nous	-
17	WR87X41085		Filter Drier		Appelez-nous	-
18	WR14X32539		Drip Tray		Appelez-nous	-
21	WR23X10615		Grounding Wire		Appelez-nous	-
22	WR01X32540		Screw Plug		Appelez-nous	-
24	WR13X30954		Top Hinge Hole Cover Black		Appelez-nous	-
25	WR02X13433		Upper Hinge Cover		Appelez-nous	-
26	WR13X32541		Top Hinge		Appelez-nous	-
27	WR13X32542		Middle Hinge		Appelez-nous	-
28	WR01X29268		Hexagon Bolt Cross Recessed		Appelez-nous	-
29	WR71X32543		Freezer Glass Shelf		Appelez-nous	-
32	WR02X31715		Lamp Switch		Appelez-nous	-
33	WR17X12941		Thermostat Box		Appelez-nous	-
34	WR55X32544		Led Lamp		Appelez-nous	-
35	WR09X32545		Thermostat		Appelez-nous	-
37	WR02X13435		Control Knob		Appelez-nous	-
38	WR02X13436		Lamp Cover		Appelez-nous	-
40	WR02X32546		Thermostat Probe Cover		Appelez-nous	-
53	WR71X32551		Refrigerator Glass Shelf		Appelez-nous	-
55	WR71X32552		Crisper Cover		Appelez-nous	-
57	WR71X32553		Crisper Drawer		Appelez-nous	-
59	WR87X43763		Inverter		Appelez-nous	-
60	WR13X32718		Machine Cover		Appelez-nous	-
9999	31-1000782		Printed And Onlinemini Manual And Wiring		Appelez-nous	-
