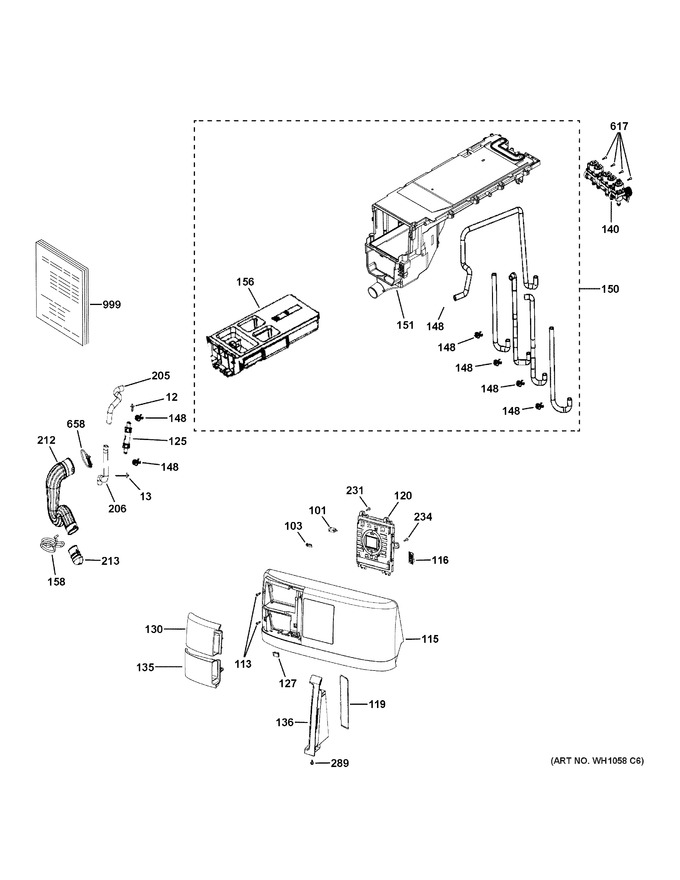

SELECT A DIAGRAM

Cabinet & Top Panel


Controls & Dispenser


Front Panel & Door


Heat Pump & Filter Assembly


Tub & Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	WH02X29626		Ground Harness Clamp		Appelez-nous	-
13	WH02X36518		Wire Tie Christmas Tree Head		Appelez-nous	-
101	WH01X26182		Out Of Balance Micro Switch				$ 7.82
103	WH01X35695		Micro Switch (lint Filter) Gasket		Appelez-nous	-
113	WE02X26338		Screw St4*16		Appelez-nous	-
115	WH13X38039		Control Panel Combo White		Appelez-nous	-
116	WH22X36263		Wifi Board		Appelez-nous	-
119	WE01X36265		Lint Filter Handle Seal Strip		Appelez-nous	-
120	WH22X38041		Ui Asm Combo Core		Appelez-nous	-
125	WE04X27737		One Way Valve		Appelez-nous	-
127	WH01X29669		Rj45 Cover		Appelez-nous	-
130	WH01X38043		Detergent Drawer Handle White Pet Hair		Appelez-nous	-
135	WH01X38049		Lower Dispenser Fascia White		Appelez-nous	-
136	WH01X38017		Lint Filter Handle Combo White		Appelez-nous	-
140	WH23X35712		Water Valve Assembly		Appelez-nous	-
148	WH01X26244		Tube Clamp		Appelez-nous	-
150	WH41X38405		Manual Dispenser Assembly		Appelez-nous	-
151	WH41X36319		Dispenser Tank Assembly		Appelez-nous	-
156	WH41X38023		Detergent Dispenser Drawer		Appelez-nous	-
158	WH01X26320		Internal Drain Hose Clamp		Appelez-nous	-
205	WH41X36777		Glass Cleaning Hose Lower		Appelez-nous	-
206	WH41X36778		Glass Cleaning Hose Upper		Appelez-nous	-
212	WH41X35729		Dispenser Hose (disp To Gasket)		Appelez-nous	-
213	WH41X29621		Dispenser Fill Hose Nozzle		Appelez-nous	-
231	WH02X27685		Screw St4*10-b		Appelez-nous	-
234	WH01X27834		Screw St4*12		Appelez-nous	-
289	WH02X29618		Screw 3.9*15		Appelez-nous	-
617	WH02X27118		Screw M4*5		Appelez-nous	-
658	WH01X27149		Tub Fill Hose To Tub Clamp		Appelez-nous	-
999	49-3000353		Pm Quick Owners Manual		Appelez-nous	-
999	31-3000358		Pm Mini Manual And Wiring		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
