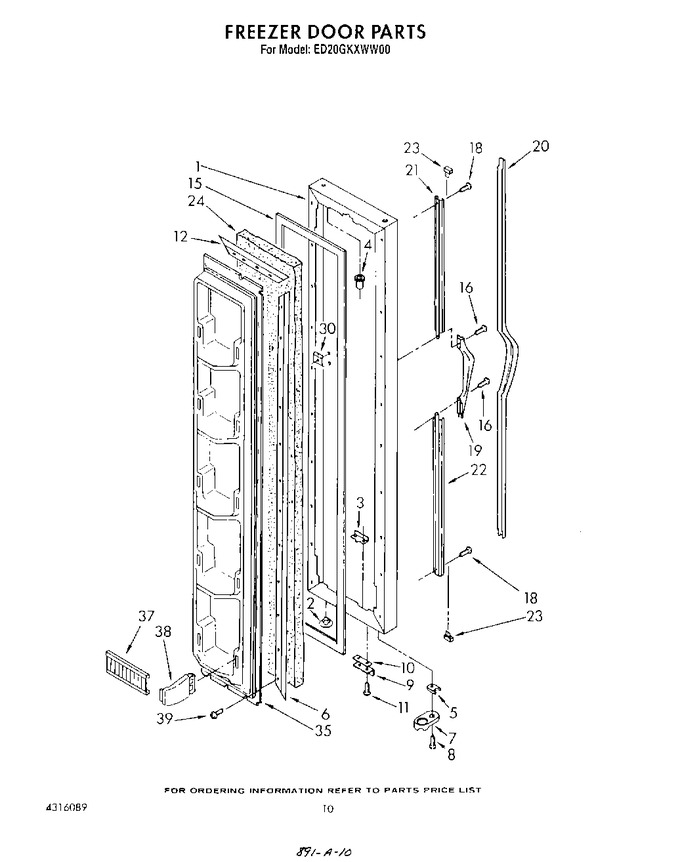

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1108470		Freezer, Door Panel (almond (also Order Item 24))		Appelez-nous	-
1	1106922		Freezer, Door Panel (white)		Appelez-nous	-
2	534927		Hole Plug (white)		Appelez-nous	-
2	989197		Hole Plug (almond)		Appelez-nous	-
3	988402		Tap Plate		Appelez-nous	-
4	509929		Cap, Hinge Sleeve		Appelez-nous	-
5	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.58
6	1117766		Gasket Retainer, Side (2)				$ 36.55
7	4318165		Door Closer, Upper Cam   (Replaces: 1115905)			Immediately	$ 27.36
8	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 7.86
9	1115906		Bracket, Door Stop		Appelez-nous	-
10	988421		Shim		Appelez-nous	-
11	488549		Screw, 8 X 5/8		Appelez-nous	-
11	488930		Screw (repair)		Appelez-nous	-
12	1117767		Gasket Retainer, Top & Bottom		Appelez-nous	-
15	2188405A		Door Gasket, Magnetic   (Replaces: 2148271)				$ 351.08
16	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 7.79
18	489075		Screw, 10-32 X 5/8		Appelez-nous	-
19	987009		Handle		Appelez-nous	-
20	1111550		Insert, Handle		Appelez-nous	-
21	987008		Insert Retainer (top)		Appelez-nous	-
22	987010		Insert Retainer (bottom)		Appelez-nous	-
23	987006		End Cap (2)		Appelez-nous	-
24	876029		Foam Insulation		Appelez-nous	-
30	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
35	1129241		Panel, Interior Door		Appelez-nous	-
37	2148200		Trim, Door Shelf (5)		Appelez-nous	-
38	WP2196100		Support Trim End (10)   (Replaces: 1110719)			Immediately	$ 8.66
39	WP489069		Screw, (28) 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.86
