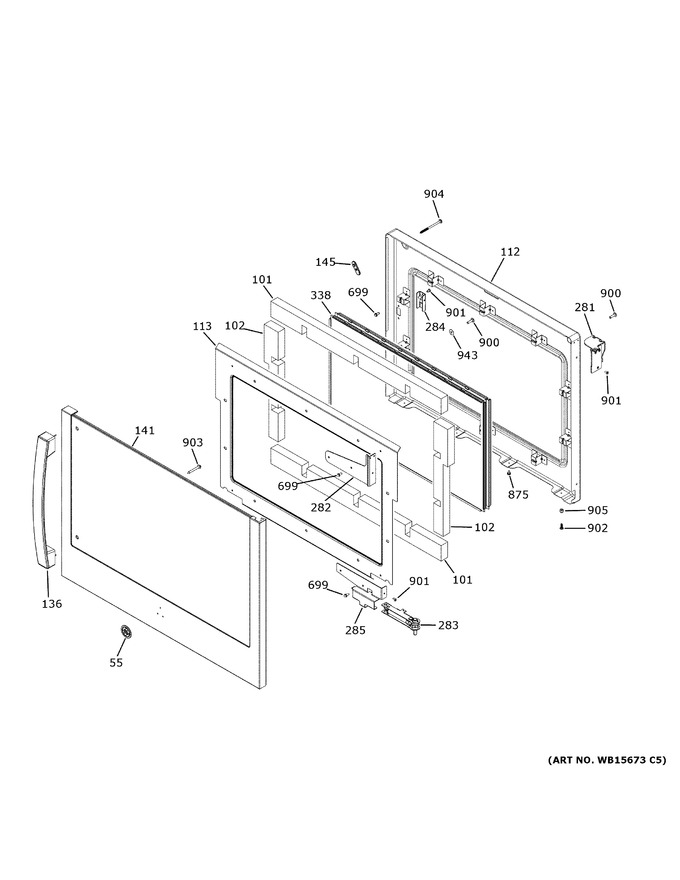

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
55	WB02X29637		Badge Asm		Appelez-nous	-
101	WB35X21737		Insulation Dr Top		Appelez-nous	-
102	WB35X31513		Door Side Insulation		Appelez-nous	-
112	WB63X33847		Liner Oven Right Door		Appelez-nous	-
113	WB34X33798		Door Insulation Retainer		Appelez-nous	-
136	WB15X34645		Stainless Handle		Appelez-nous	-
141	WB56X33877		Stainless Outer Right Hinge Lower Door		Appelez-nous	-
145	WB02X37056		Liner Door Plug		Appelez-nous	-
281	WB10X41666		Hinge Upr Rh		Appelez-nous	-
282	WB34X37079		Hinge Upper Right Bracket		Appelez-nous	-
283	WB10X34668		Hinge Closure Right Door		Appelez-nous	-
284	WB26X34732		Roller		Appelez-nous	-
285	WB10X34713		Sleeve Right Lower Hinge		Appelez-nous	-
338	WB56X27662		Window Pack Asm		Appelez-nous	-
699	WB1K5150		Screw St10-16 X 7/16"		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
900	WB01X34649		Screw 10-18 Pl Trt20 3/4 S		Appelez-nous	-
901	WB01T10012		Screw 8-18 Ab Flt 375 B		Appelez-nous	-
902	WR01X24363		Scr 8- 18 Ba Ovt 5/8 Ss		Appelez-nous	-
903	WB01T10132		Screw 10-32 Hex 1 3/4 In		Appelez-nous	-
904	WB01X37065		Screw 10-32 Ca Trt15 3.06		Appelez-nous	-
905	WB02X37059		Spacer Link		Appelez-nous	-
943	WB02X40586		Washer Black		Appelez-nous	-
