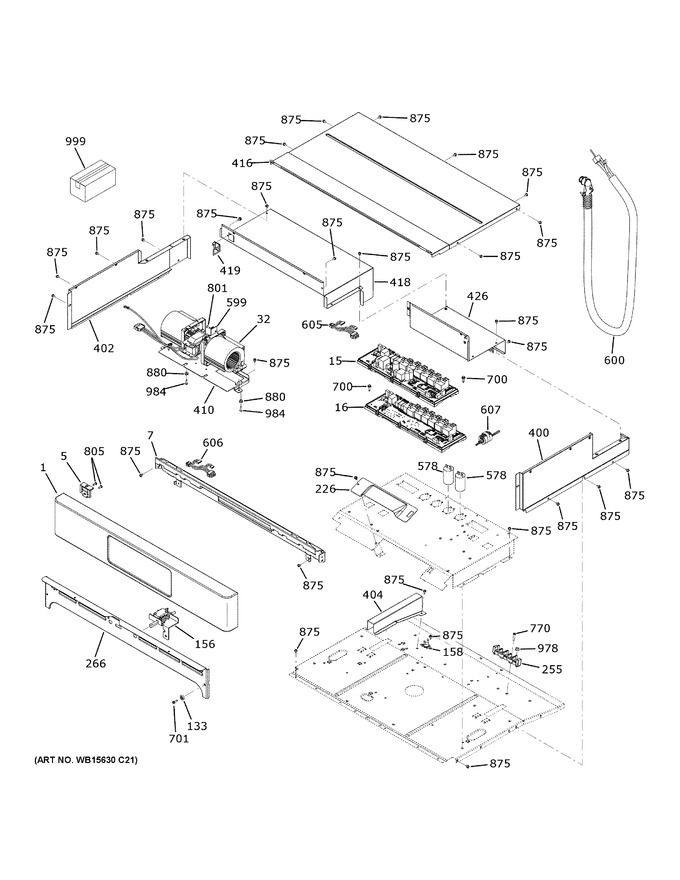

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB56X49897		Control Panel - Matte White		Appelez-nous	-
5	WB34X29268		Control Panel Support Bracket		Appelez-nous	-
7	WB34X28389		Bracket Cntl Pnl Mtg		Appelez-nous	-
15	WB27X49873		Rc17 Control - Flashed		Appelez-nous	-
16	WB27X49871		Rc17 Control - Flashed		Appelez-nous	-
32	WB26X31060		Cooling Fan		Appelez-nous	-
133	WB03T10341		Bumper Door		Appelez-nous	-
156	WB24X23760		Switch Plate Asm		Appelez-nous	-
158	WB24X35587		Switch Limit		Appelez-nous	-
226	WB34X33875		Cover Latch Access		Appelez-nous	-
255	WB17T10024		Block Terminal		Appelez-nous	-
266	WB07X34840		Trim Vent Upper		Appelez-nous	-
400	WB34T10164		Cover Top Right Edge		Appelez-nous	-
402	WB44T10126		Cover Top Left Edge		Appelez-nous	-
404	WB34T10150		Channel Upper Air Vent		Appelez-nous	-
410	WB37T10026		Bracket Upper Fan Mount		Appelez-nous	-
416	WB34X28390		Cover Housing Frt		Appelez-nous	-
418	WB24X32772		Cover Top Rear		Appelez-nous	-
419	WB24X33028		Rj45 Bracket		Appelez-nous	-
426	WB35T10273		Cover Wire Rear		Appelez-nous	-
578	WG02F00227		Capacitor Motor   (Replaces: WB27T10662)				$ 25.73
599	WB27T11463		Board Fan Sensor		Appelez-nous	-
600	WB18T10580		Optional 6 Ft Conduit		Appelez-nous	-
600	WB18X33486		Conduit Wire Dwo		Appelez-nous	-
605	WB18X46485		Main Wire Harness		Appelez-nous	-
606	WB18X46488		Latch Com Wire Harness		Appelez-nous	-
606	WB18X47031		Latch Com Wire Harness		Appelez-nous	-
607	WB18X50227		Ui And Rj45 Harness		Appelez-nous	-
700	WZ4X416		Wz04x0408		Appelez-nous	-
701	WB01X21650		Scr 8-18 Ab Trt20nbs 5/8		Appelez-nous	-
770	WB1K5072		Screw		Appelez-nous	-
801	WD02X10129		6-19 X 1/4 Torx Pan Head		Appelez-nous	-
805	WB1K5062		Screw St8-18x.500trbrni		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
880	WB01T10128		Grommet		Appelez-nous	-
978	WB1X1259		Hex Nut		Appelez-nous	-
984	WB01T10130		Screw 7-19 1/4hex 1/2in		Appelez-nous	-
999	31-2000913		Pm Install Instructions		Appelez-nous	-
999	31-2000265		Pm Mini Manual And Wiring		Appelez-nous	-
999	31-11066		Pm Install Instructions		Appelez-nous	-
999	31-10957		Pm Install Instructions		Appelez-nous	-
999	31-11159		Pm Install Instructions		Appelez-nous	-
999	WG02A00297		Lubricant Cleaner   (Replaces: WB02T10303)				$ 69.62
999	49-2001225		Pm Quick Owners Manual		Appelez-nous	-
999	49-2000381		Pm Owners Manual		Appelez-nous	-
999	49-2000988		Pm Insert Instructions		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
