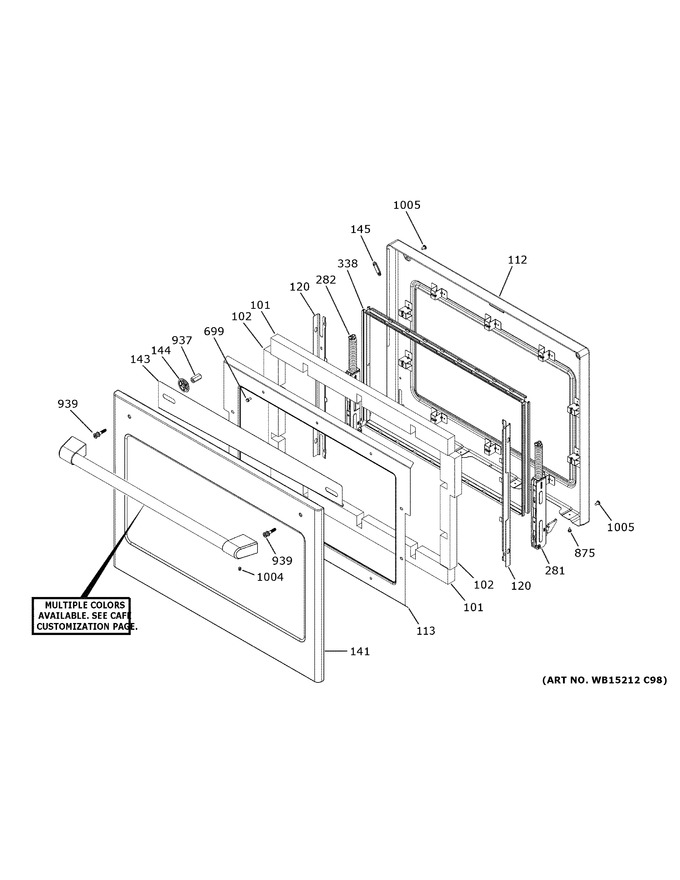

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	WB35X21737		Insulation Dr Top		Appelez-nous	-
102	WB35X31513		Door Side Insulation		Appelez-nous	-
112	WB63X32569		Oven Door Liner Asm		Appelez-nous	-
113	WB34X31516		Door Insulation Retainer		Appelez-nous	-
120	WB34X46746		Liner Support		Appelez-nous	-
141	WB56X48147		Lower Outer Door-white		Appelez-nous	-
143	WB34X37051		Deflector Outer Door Glass		Appelez-nous	-
143	WB34T10142		Deflector Oven Door		Appelez-nous	-
144	WB02T10524		Spacer Door Hdl		Appelez-nous	-
145	WB02X32816		Door Liner Plug		Appelez-nous	-
281	WB10X37066		Soft Close Hinge Right Door		Appelez-nous	-
282	WB10X37049		Soft Close Hinge Left Door		Appelez-nous	-
338	WB56X27662		Window Pack Asm		Appelez-nous	-
699	WB1K5150		Screw St10-16 X 7/16"		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
937	WB01X31717		Reinforcement Spacer		Appelez-nous	-
939	WB01X31573		Mounting Stud		Appelez-nous	-
1004	WR01X20424		Set Screw (9.5mm)		Appelez-nous	-
1005	WS01A01018		Screw 10-32 Tr T   (Replaces: WB01T10008)			Immediately	$ 3.57
