View Diagram in Separate Window
Print Part List

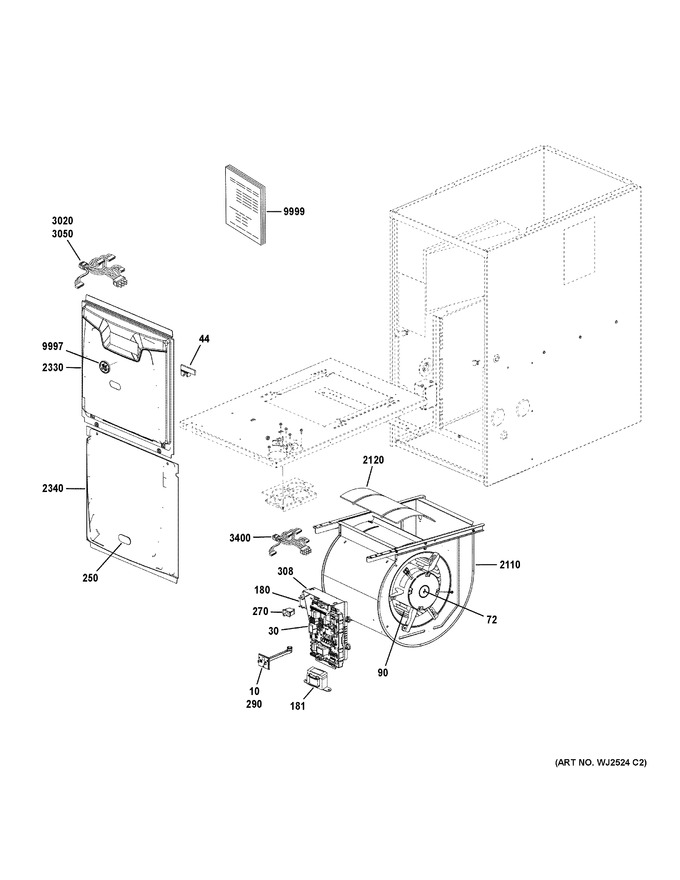

SELECT A DIAGRAM
Cabinet (1)
Cabinet (2)
Optional Accessories
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 69W42 | 102135-09 Control-limit (220f) |
|
- | |||||
| 30 | 10U92 | 103132-03 Control-ign Cont-torque-2stage |
|
- | |||||
| 44 | 26W34 | Breaker Circuit-(cto) |
|
- | |||||
| 72 | 16U33 | Assy, Motor Programmed 607363-24 |
|
- | |||||
| 90 | 16596 | Lb-29333bm Wheel-(cto) |
|
$ 266.40 | |||||
| 180 | 42J32 | 42j3201 Transformer |
|
Immediately | $ 48.47 | ||||
| 181 | 10Y66 | Transformer Power Choke-(cto) |
|
$ 106.84 | |||||
| 250 | 73W21 | Sight Glass-(cto) |
|
- | |||||
| 270 | 51W15 | Switch-interlock-(cto) |
|
Immediately | $ 33.78 | ||||
| 290 | 69M38 | Control-limit(aux) 135f-(cto) |
|
$ 67.39 | |||||
| 308 | 28W59 | Box-control-(cto) |
|
- | |||||
| 2110 | 57M87 | Hsg-blwr 10x8 612256-02-(cto) |
|
- | |||||
| 2120 | 68W49 | Plate-cutoff-(cto) |
|
- | |||||
| 2330 | 623817-01U | Lower Door B-width 90% Uf Blwr-(cto) |
|
- | |||||
| 2340 | 623652-02U | Btm Door B-width 80% Uf Vest-(cto) |
|
- | |||||
| 3020 | 12T59 | Harness-wiring Unit-(cto) |
|
- | |||||
| 3050 | 68L52 | Harn Wire-(cto) |
|
- | |||||
| 3400 | 20A21 | Motor Harness-(cto) |
|
- | |||||
| 9997 | 107213-05 | Side Gea Badge |
|
- | |||||
| 9999 | 31-5000644 | Pm Other |
|
- |
