SELECT A DIAGRAM
Center Spacer
Control Panel
Convection Fan
Lower Door
Lower Oven

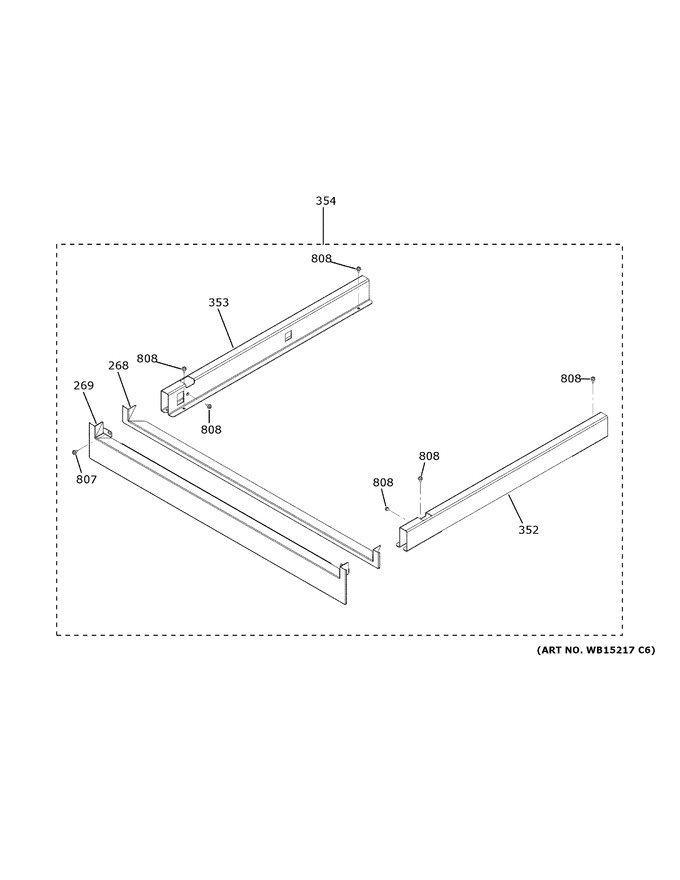

Pedestal
Upper Door
Upper Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 268 | WB07T10786 | Trim Bottom Cabinet |
|
- | |||||
| 269 | WB07T10791 | Trim Bottom Cabinet |
|
- | |||||
| 352 | WB37T10028 | Channel Pedestal Right |
|
- | |||||
| 353 | WB37T10029 | Channel Pedestal Left |
|
- | |||||
| 354 | WB63X33361 | Pedestal Asm |
|
- | |||||
| 807 | WB1X1174 | Screw-nickle |
|
- | |||||
| 808 | WG02A00783 | Trim Screw-blk (Replaces: WB1K5173) |
|
$ 3.57 |
