New Model Search:

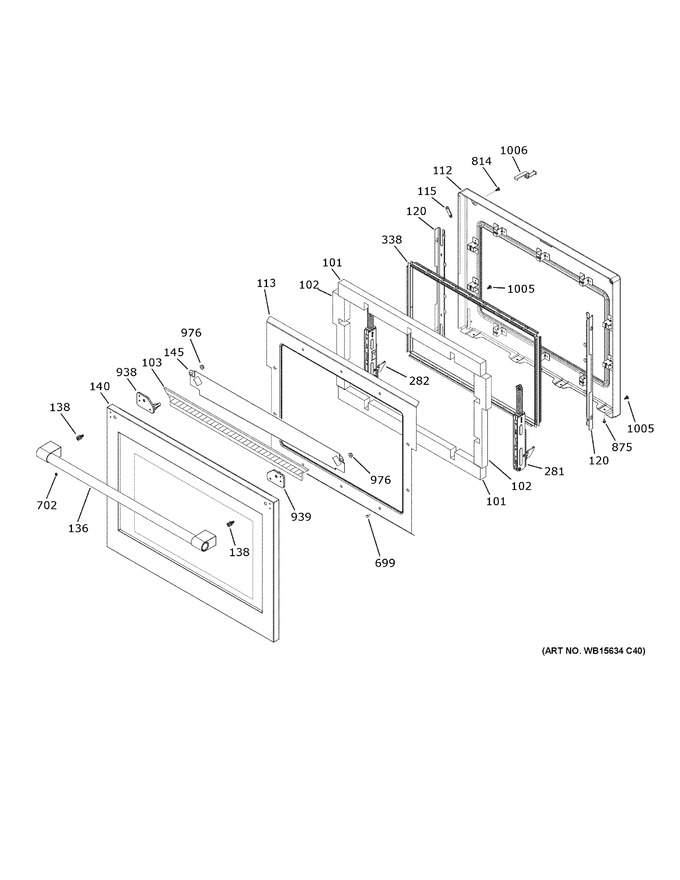

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 101 | WB35X21737 | Insulation Dr Top |
|
- | |||||
| 102 | WB35X31513 | Door Side Insulation |
|
- | |||||
| 103 | WB35X33916 | Insulation Door 30" |
|
- | |||||
| 112 | WB63X32569 | Oven Door Liner Asm |
|
- | |||||
| 113 | WB34X31516 | Door Insulation Retainer |
|
- | |||||
| 115 | WB02X32816 | Door Liner Plug |
|
- | |||||
| 120 | WB34X46746 | Liner Support |
|
- | |||||
| 136 | WB15X35305 | Stainless Handle W/o Logo |
|
- | |||||
| 138 | WB01X31574 | Mounting Stud |
|
- | |||||
| 140 | WB56X43555 | Glass And Trim Outer Door W/o Logo |
|
- | |||||
| 145 | WB34X33852 | Deflector Outer Glass Door |
|
- | |||||
| 281 | WB10X40033 | Hinge Right Door Soft Close |
|
- | |||||
| 282 | WB10X40037 | Hinge Left Door Soft Close |
|
- | |||||
| 338 | WB56X27662 | Window Pack Asm |
|
- | |||||
| 699 | WB1K5150 | Wb1m1 |
|
- | |||||
| 702 | WR01X20424 | Set Screw (9.5mm) |
|
- | |||||
| 814 | WB01X34649 | Screw 10-18 Pl Trt20 3/4 S |
|
- | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 938 | WB02X34647 | Support Left Handle |
|
- | |||||
| 939 | WB02X34674 | Support Handle Right |
|
- | |||||
| 976 | WB01X31575 | Hex Nut 1/4-20 |
|
- | |||||
| 1005 | WS01A01018 | Screw 10-32 Tr T (Replaces: WB01T10008) |
|
Immediately | $ 3.57 | ||||
| 1006 | WB02X40042 | Stop Door Dehydrate |
|
- |
