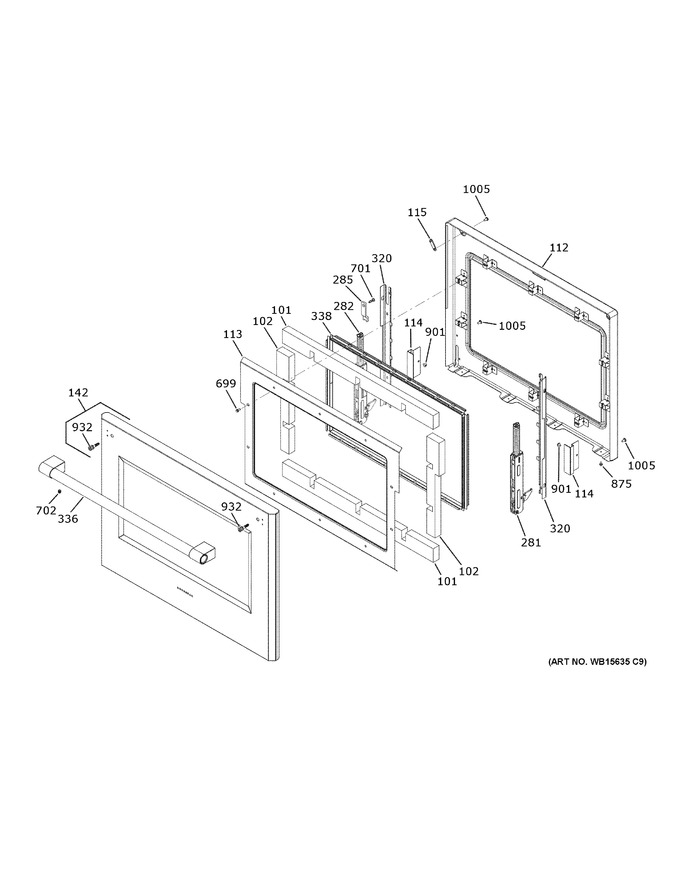

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	WB35X21737		Insulation Dr Top		Appelez-nous	-
102	WB35X31513		Door Side Insulation		Appelez-nous	-
112	WB63X32569		Oven Door Liner Asm		Appelez-nous	-
113	WB34X31516		Door Insulation Retainer		Appelez-nous	-
114	WB34X34996		Bracket And Tape Asm		Appelez-nous	-
115	WB02X32816		Door Liner Plug		Appelez-nous	-
142	WB56X45751		Lower Outer Door-stainless		Appelez-nous	-
281	WB10X36953		Soft Close Hinge Right Door		Appelez-nous	-
282	WB10X36945		Soft Close Hinge Left Door		Appelez-nous	-
285	WB10X44866		Bracket Hinge		Appelez-nous	-
320	WB34X46746		Liner Support		Appelez-nous	-
336	WB15X41046		Stainless Door Hanlde Pack		Appelez-nous	-
338	WB56X27662		Window Pack Asm		Appelez-nous	-
699	WB1K5150		Wb1m1		Appelez-nous	-
701	WB01X21650		Scr 8-18 Ab Trt20nbs 5/8		Appelez-nous	-
702	WR01X20424		Set Screw (9.5mm)		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
901	WB01X34992		Screw 10-32 Mch Trt20 I/4		Appelez-nous	-
932	WB01X31574		Mounting Stud		Appelez-nous	-
1005	WS01A01018		Screw 10-32 Tr T   (Replaces: WB01T10008)			Immediately	$ 3.57
