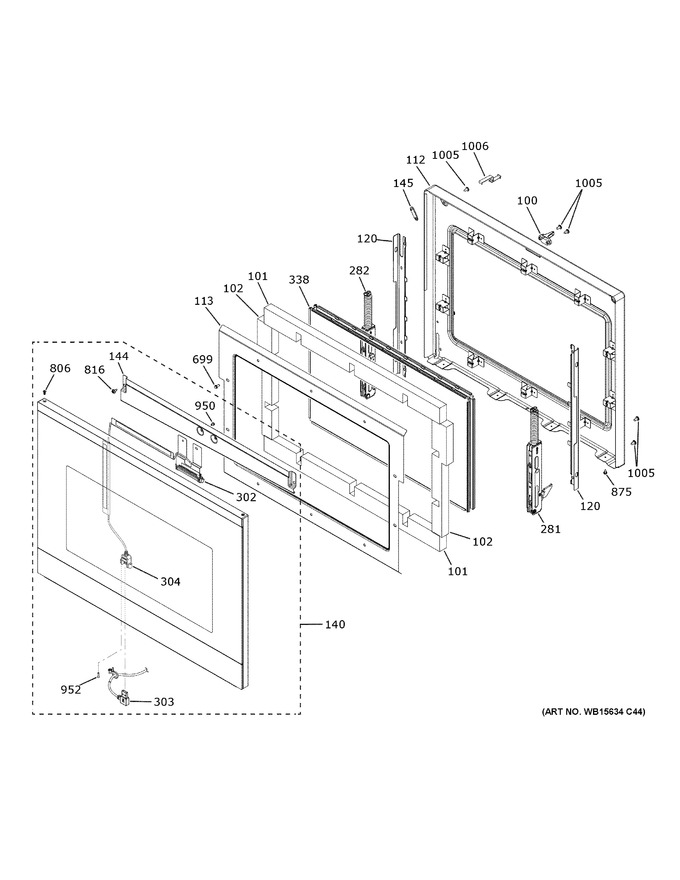

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 100 | WB14X34677 | Latch Pawl |
|
- | |||||
| 101 | WB35X21737 | Insulation Dr Top |
|
- | |||||
| 102 | WB35X31513 | Door Side Insulation |
|
- | |||||
| 112 | WB63X33859 | Liner Oven Door Asm |
|
- | |||||
| 113 | WB34X31516 | Door Insulation Retainer |
|
- | |||||
| 120 | WB34X46746 | Liner Support |
|
- | |||||
| 140 | WB56X50193 | Outer Door - Stainless |
|
- | |||||
| 144 | WB07X40786 | Deflector Outer Door Glass |
|
- | |||||
| 145 | WB02X32816 | Door Liner Plug |
|
- | |||||
| 281 | WB10X33832 | Soft Open Hinge Right Door |
|
- | |||||
| 282 | WB10X33858 | Soft Open Hinge Left Door |
|
- | |||||
| 302 | WB1X1424 | Screw, Transformer |
|
- | |||||
| 303 | WB18X35000 | Harness Wire Camera - Ui To Door |
|
- | |||||
| 304 | WB18X35646 | Harness Wire Camera To Door |
|
- | |||||
| 338 | WB56X27662 | Window Pack Asm |
|
- | |||||
| 699 | WB1K5150 | Screw St10-16 X 7/16" |
|
- | |||||
| 806 | WB01X32952 | Screw 8-32 Tt Flt 7/20 |
|
- | |||||
| 816 | WB1X1424 | Screw, Transformer |
|
- | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 950 | WB1X1178 | Screw |
|
- | |||||
| 952 | WB01X33357 | Screw 6-32 Flt-10 1/4 |
|
- | |||||
| 1005 | WS01A01018 | Screw 10-32 Tr T (Replaces: WB01T10008) |
|
Immediately | $ 3.57 | ||||
| 1006 | WB02X40042 | Stop Door Dehydrate |
|
- |
