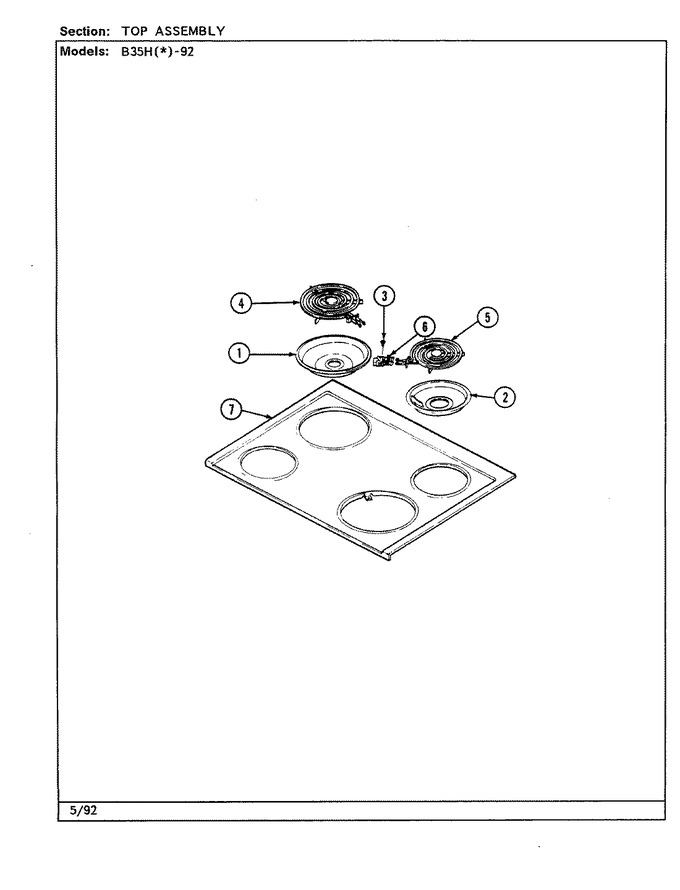

06 - Top Assy.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 19950051A | Ring, Trim (8``) (Replaces: 7744P054-60) | 01 |
|
$ 17.41 | ||||
| 1 | 715878 | Bowl, Drip (8``) (chr) (Replaces: 7725P019-60) | 01 |
|
Immediately | $ 23.51 | |||
| 2 | 7744P053-60 | Ring, Trim (6``) | 01 |
|
- | ||||
| 2 | 715877 | Bowl, Drip (6``) (chr) (Replaces: 7725P018-60) | 01 |
|
Immediately | $ 21.54 | |||
| 3 | WP74004005 | Screw (Replaces: 7118P013-60) | 01 |
|
$ 8.66 | ||||
| 4 | WP3191454 | Element (8``) (Replaces: 7406P015-60) | 01 |
|
$ 190.90 | ||||
| 5 | WP660532 | Element (6``) (Replaces: 7406P018-60) | 01 |
|
Immediately | $ 41.00 | |||
| 6 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 01 |
|
Immediately | $ 31.61 | |||
| 7 | 2002W028-81 | Top, Main (white) | 01 |
|
- | ||||
| NI | 3802F085-80 | Brace | 01 |
|
- | ||||
| NI | WP4159193 | Screw (Replaces: 7118P004-60) | 01 |
|
$ 5.07 | ||||
| NI | 5175A044-60 | Harness, Surface Unit | 01 |
|
- |
