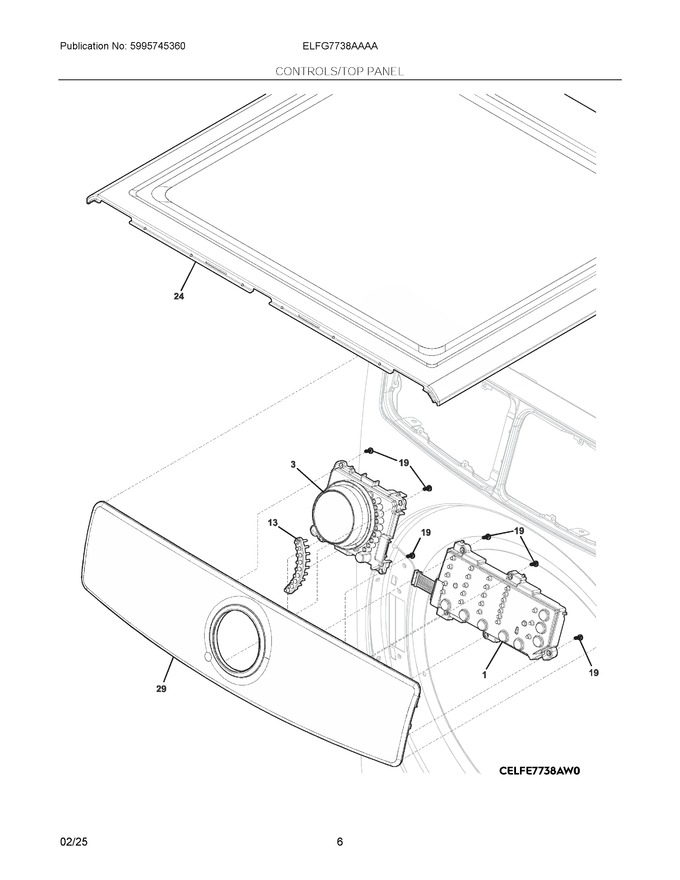

04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304537902		Ui Satellite, Board Assembly				$ 144.93
3	5304537930		Knob Assembly, Complete, W/boards		Appelez-nous	-
13	5304529751		Diffuser, Light				$ 16.87
19	5304505441		Screw, Pph B, 6-20x.375				$ 7.23
24	5304537903		Panel, Work Top, Green				$ 142.44
29	5304537931		Console Assembly, W/overlay		Appelez-nous	-
NI	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 15.75
NI	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 15.75
NI	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.73
