SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven, Cabinet

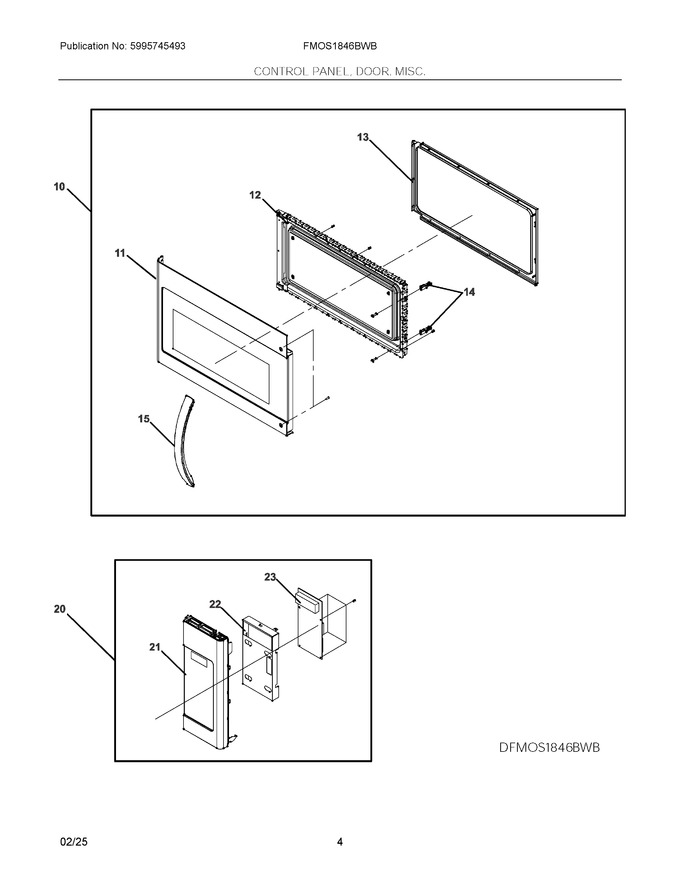

03 - Control Panel, Door, Misc.


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304523995		Door Assembly, Complete, White				$ 393.59
11	5304523996		Door Assembly, Outer, White				$ 296.40
12	5304523997		Frame, Door, White		Appelez-nous	-
13	5304523970		Gasket, Door				$ 86.00
14	5304523249		Latch, Door				$ 9.74
15	5304509610		Handle, Door, White			Immediately	$ 277.44
20	5304533683		Control Panel, Assembly, White, Complete				$ 443.16
21	5304533684		Control Panel, Assembly, White, Outer, W/touchpad		Appelez-nous	-
22	5304523973		Shield, Pc Board				$ 32.94
23	5304533649		Pc Board, Assembly, Control, W/display			Immediately	$ 216.29

    View Diagram in Separate Window       Print Part List
