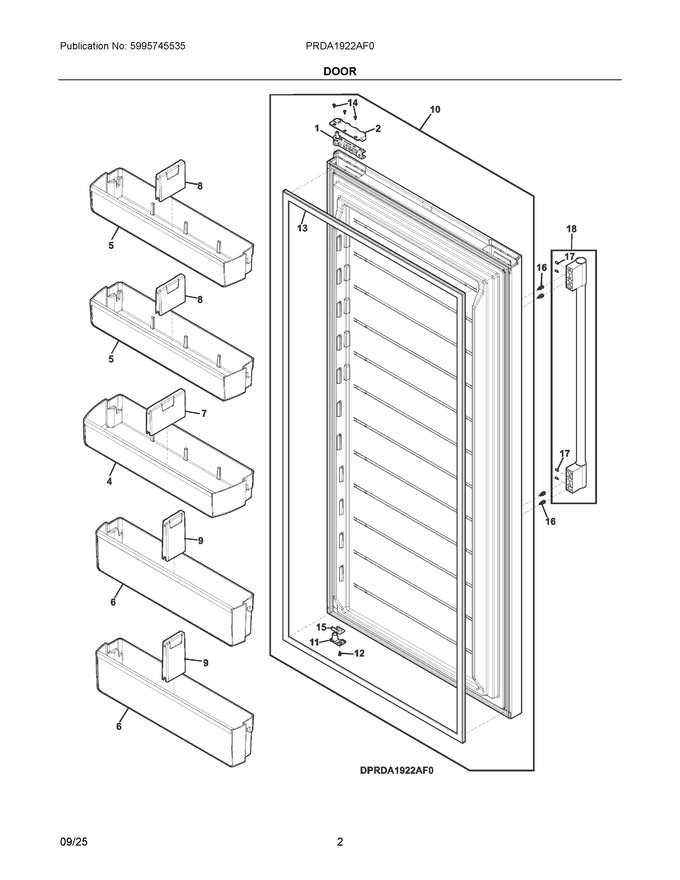

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304524643 | Closer Assembly, Door, Rh Upper |
|
Immediately | $ 128.08 | ||||
| 2 | 5304524623 | Cover, Door Cap, Gray, Rh, Closer Side |
|
$ 16.07 | |||||
| 4 | 5304453707 | Screw, Quad Hilo, #8-18 X 0.50 (Replaces: 241953901) |
|
Immediately | $ 17.69 | ||||
| 5 | 5304529219 | Bin, Door, 2 Liter |
|
Immediately | $ 193.11 | ||||
| 6 | 5304529221 | Bin, Door, Tall Items |
|
Immediately | $ 168.23 | ||||
| 7 | 5304524846 | Divider, Gallon, Door Bin |
|
$ 32.13 | |||||
| 8 | 5304524634 | Divider, Door Bin, 2 Liter |
|
$ 32.13 | |||||
| 9 | 5304524635 | Divider, Door Bin, Tall Items |
|
$ 33.74 | |||||
| 10 | 5304538165 | Door Assembly, Complete, Stainless, Rh Swing |
|
$ 832.48 | |||||
| 11 | 5304524745 | Bearing, Door, Lower |
|
Immediately | $ 8.84 | ||||
| 12 | 241953903 | Screw, Door Stop, Lower |
|
$ 5.63 | |||||
| 13 | 140190906879 | Gasket, Door, Grey (Replaces: 5304524888) |
|
Immediately | $ 124.14 | ||||
| 14 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 19.01 | ||||
| 15 | 5304524767 | Stop, Door, Lower Bearing |
|
Immediately | $ 12.64 | ||||
| 17 | 218755405 | Screw, Set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 22.84 | ||||
| 18 | 5304535090 | S/a Pur-handle Verticle Pro |
|
- | |||||
| 4A | 5304524631 | Bin, Door, Galon (Replaces: 5304529220) |
|
Immediately | $ 165.86 | ||||
| NIA | 241601002 | Wrench, Allen |
|
- |
