SELECT A DIAGRAM

01 - Cover Sheet


02 - Freezer Drawers, Basket


03 - Fresh Food Doors


04 - Cabinet/air Handling


05 - Shelves/water Filter


06 - Cooling System


07 - Wiring Diagram

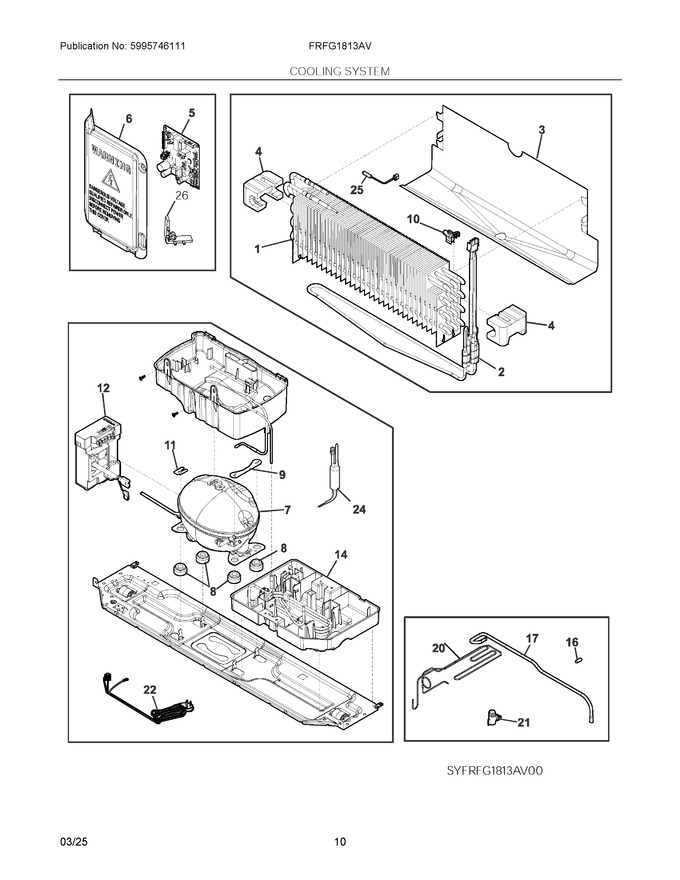

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304529139		Evaporator, Coil			Immediately	$ 134.54
2	5304529140		Heater, Defrost, Evaporator			Immediately	$ 167.69
3	5304529143		Trough, Drain, Evaporator			Immediately	$ 78.19
4	5304529142		Support, Evaporator		Appelez-nous	-
5	973925060930006		Pcb Erf2004, Control Board ,main ,power			Immediately	$ 171.83
6	5304529129		Housing, Control Board, Rear		Appelez-nous	-
7	5304529146		Compressor, Embraco, Fmxa9c				$ 394.28
8	811978901		Grommet, Compressor		Appelez-nous	-
9	5304524607		Clamp, Compressor, 2 Hole   (Replaces: 811998601)				$ 3.21
10	811980406		Clamp, Ntc, Evaporator   (Replaces: 5304534879)				$ 4.66
11	5304519152		Clamp, Compressor, Single Hole		Appelez-nous	-
12	5304529147		Inverter Assembly, Compressor, Fmx				$ 412.21
14	5304536578		Drain Pan, Assembly				$ 15.61
16	5304529162		Cap, Tubing				$ 5.06
17	5304529148		Tube, Jumper				$ 31.17
20	140254958014		Tube, Drain		Appelez-nous	-
21	811976001		Valve Assembly, Drain				$ 10.11
22	5304536756		Cord, Power, Electric Service				$ 32.98
24	A19676501		Filter, Drier, Service			Immediately	$ 118.88
25	5304520944		Sensor, Temperature			Immediately	$ 23.04
26	140012787028		Housing, Control Board, Rear, Pcb		Appelez-nous	-
NI	5304519110		Screw, Trilob, M3 X 6				$ 3.37
NI	811949503		Screw, Truss, 4.2 X 13				$ 3.37
NI	5304523032		Screw, Trilob, M4 X 7.5		Appelez-nous	-
NI	808337901		Screw, Pf Ab Pfz Pf, 3.5x1.27x19				$ 3.37

    View Diagram in Separate Window       Print Part List
