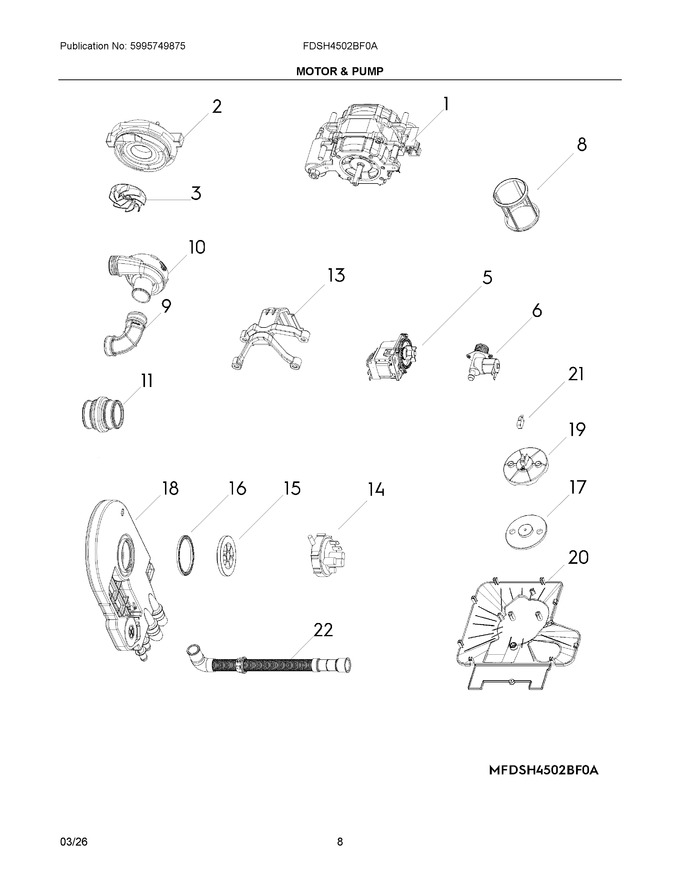

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304539038		Motor, Asynchronous, Single Phase				$ 179.60
2	5304539039		Cover, Lower Pump				$ 6.05
3	5304539040		Impeller, Pump				$ 3.85
4	5304516678		Filter Assembly, Plane		Appelez-nous	-
5	5304537633		Drain Pump				$ 68.15
6	5304537634		Inlet Valve				$ 46.03
7	5304516677		Handle, Filter		Appelez-nous	-
8	5304539028		Filter				$ 15.32
9	5304516685		Tube, Inlet			Immediately	$ 77.18
10	5304516686		Housing, Impeller			Immediately	$ 41.74
11	5304516687		Tube, Outlet			Immediately	$ 47.25
12	5304483441		Thermistor			Immediately	$ 48.83
13	5304519250		Support, Assembly, Pump		Appelez-nous	-
14	5304516645		Switch, Pressure			Immediately	$ 106.82
15	5304539037		Outlet, Ventilation, Tub		Appelez-nous	-
16	5304516636		Gasket, Washer, (3)				$ 13.01
17	5304516654		Float				$ 17.03
18	5304516635		Air Breather, Assembly		Appelez-nous	-
19	5304516652		Seat Bracket, Float		Appelez-nous	-
20	5304539027		Cover, Chassis		Appelez-nous	-
21	5304539026		Switch, Float				$ 12.53
22	4056022884		Drain Hose, Assembly			Immediately	$ 26.03
