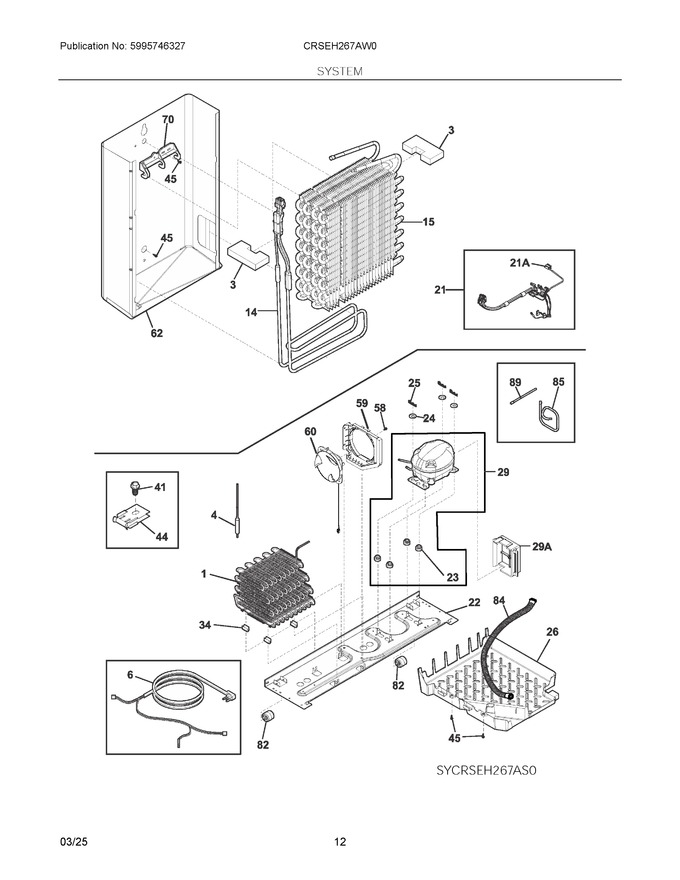

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304526057 | Condenser |
|
$ 170.22 | |||||
| 3 | 218679614 | Block-evap Coil, Styrofoam, (2) |
|
$ 22.05 | |||||
| 4 | 5303305677 | Dryer-filter (Replaces: 242047604) |
|
Immediately | $ 35.19 | ||||
| 6 | 241516904 | Cord, Service |
|
Immediately | $ 42.98 | ||||
| 14 | 5304526032 | Heater, Defrost |
|
Immediately | $ 156.73 | ||||
| 15 | 5303918284 | Evaporator Kit |
|
$ 534.45 | |||||
| 21 | 140130970050 | Harness Assembly, Low Side, Dc, Evap Fan (Replaces: 5304526980) |
|
Immediately | $ 26.46 | ||||
| 22 | 5304526006 | Base, Compressor, 22 |
|
- | |||||
| 23 | 5304530281 | Grommet, Compressor Mtg, 34 |
|
- | |||||
| 24 | 241812301 | Washer-comp, Mtg |
|
$ 14.32 | |||||
| 25 | 242037702 | Clip-spring |
|
$ 9.45 | |||||
| 26 | 241697603 | Pan-defrost, 26 |
|
$ 88.02 | |||||
| 29 | 5304534515 | Compressor, Jiaxipera Vmh, W/o Electricals |
|
$ 313.06 | |||||
| 34 | 240405201 | Grommet, Rubber, Black, 23 # |
|
$ 22.05 | |||||
| 41 | 240555002 | Screw-#8-32 X 3/8 |
|
Immediately | $ 14.96 | ||||
| 44 | 215628301 | Clamp, Strain Relief |
|
- | |||||
| 45 | 241500303 | Screw, Hex Washer Head, 8-18ab X 1/2 |
|
Immediately | $ 5.06 | ||||
| 58 | 240569202 | Screw, 8-18 X .500 |
|
$ 2.36 | |||||
| 59 | 5304534556 | Shroud, Condenser Fan |
|
$ 70.96 | |||||
| 60 | 140233258015 | Motor, Condenser Fan (Replaces: 5304534504) |
|
$ 63.70 | |||||
| 62 | 5304526003 | Trough, Evap Drain |
|
- | |||||
| 70 | 218990801 | Bracket-evap/cvr Mtg |
|
$ 70.88 | |||||
| 82 | 240335202 | Roller, Compressor Base, Rear |
|
$ 23.63 | |||||
| 84 | 241830905 | Tube-drain, Lower |
|
$ 22.05 | |||||
| 85 | 5304530251 | Tube, Connector, Suction |
|
Immediately | $ 24.50 | ||||
| 89 | 215346903 | Tube - Process (Replaces: 215346902) |
|
Immediately | $ 11.74 | ||||
| 21A | 5303918645 | Thermistor Kit, Evaporator, W/connector |
|
Immediately | $ 94.00 | ||||
| 29A | 5304534558 | Cover, Compressor, Electricals |
|
- | |||||
| 45A | 5308000039 | Screw, Hex Washer Head, 8-32ca X 0.500, Serrated Head |
|
- | |||||
| NI | 5303918327 | Heat Exchanger Kit, Suction Line |
|
$ 337.68 | |||||
| NI | 241500305 | Screw, Hex Washer Head, 8-18ab X 0.625 (Replaces: 241500304) |
|
$ 3.37 | |||||
| NI | 218515401 | Clip, Grille/tube, & Hinge |
|
$ 19.69 | |||||
| NI | 218709101 | Screw, Hex Head, 10-32 X 0.500 |
|
$ 7.09 | |||||
| NI | 240521303 | Screw, #10-16 X 1/2 |
|
Immediately | $ 33.55 | ||||
| NIA | 240359403 | Screw-fan Shroud, (2) |
|
$ 4.21 | |||||
| NIA | 140287527075 | Harness, Wiring, Machine Comp (Replaces: 5304535347) |
|
- |
