Control Panel Parts
Internal Oven Parts
Lower Oven Door Parts
Optional Parts (not Included)
Oven Parts
Upper Oven Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

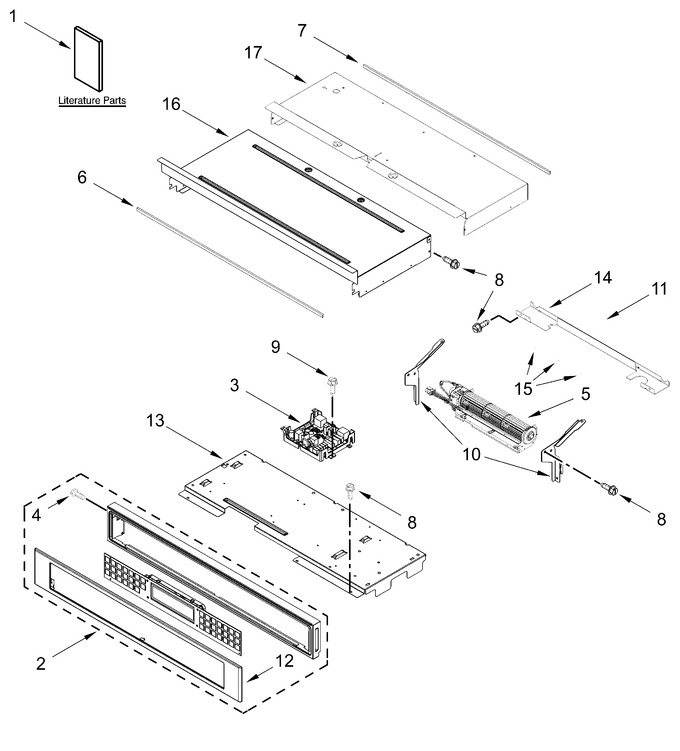

| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11755760 | Control Panel Assembly (stainless) (Replaces: W11739571) |
|
- | |||||
| 3 | W11448962 | Appliance Manager, Copernicus (Replaces: W11249218) |
|
Immediately | $ 325.47 | ||||
| 4 | W11602625 | Screw (black) (Replaces: W11339492) |
|
$ 14.72 | |||||
| 5 | W11598119 | Blower (Replaces: W11397930) |
|
Immediately | $ 388.25 | ||||
| 6 | W11226314 | Gasket, Rubber (Replaces: W11162063) |
|
- | |||||
| 7 | W10728475 | Gasket, Rubber |
|
$ 38.13 | |||||
| 8 | 7101P42660 | Screw |
|
- | |||||
| 9 | 7101P43460 | Screw |
|
- | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 12 | W11749090 | Skin, Control Panel (stainless) (Replaces: W11733545) |
|
- | |||||
| 13 | W11179509 | Tray, Electronic |
|
- | |||||
| 14 | W11166802 | Divider, Chassis Back |
|
- | |||||
| 15 | W10351295 | Bumper |
|
$ 22.12 | |||||
| 16 | W11821591 | Cover, 30 In Chassis Top (front) (Replaces: W11244445) |
|
- | |||||
| 17 | W11223325 | Cover, 30 In Chassis Top (back) |
|
$ 85.77 | |||||
| W11602626 | Bag, Hardware (Replaces: W11394923) |
|
$ 23.47 | ||||||
| W10655464 | Bracket, Harness |
|
$ 40.71 | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W10655462 | Bracket, Blower (right) |
|
- | ||||||
| ARI38D35BAE78D1A940514098F5A17CA16C | (lower) |
|
- | ||||||
| W11598200 | Appliance Manager, Copernicus (without Power Supply) (Replaces: W11249217) |
|
Immediately | $ 365.88 | |||||
| ARIBDE34E4B7C52536A232C9D8494429F6D | (upper) |
|
- | ||||||
| W11340883 | Tech Manual |
|
- | ||||||
| W11479717 | Wiring Diagram |
|
- | ||||||
| W11618058 | Quick Start Guide |
|
- | ||||||
| W11656312 | Owner's Manual |
|
- | ||||||
| 4448664 | Clamp, Conduit |
|
$ 21.41 | ||||||
| W11233570 | Harness, Console |
|
Immediately | $ 234.66 | |||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | ||||||
| 4450800 | Screw, Grounding |
|
$ 13.47 | ||||||
| W11699910 | Harness, Eol (Replaces: W10562910) |
|
$ 32.95 | ||||||
| W11727826 | Harness, Door Latch (Replaces: W11264646) |
|
$ 61.80 | ||||||
| W11788676 | Harness, Signal (Replaces: W11256625) |
|
Immediately | $ 242.33 | |||||
| W11245674 | Harness, Main |
|
Immediately | $ 401.44 |
