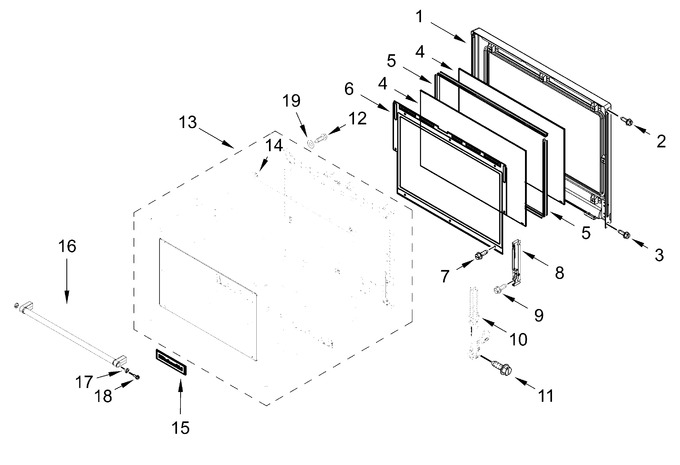

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11768649		Liner Assembly   (Replaces: W11302587)			Immediately	$ 303.81
2	7101P37560		Screw		Appelez-nous	-
3	W11617225		Screw   (Replaces: W11290045)				$ 14.77
4	WPW10618107		Glass, Inner   (Replaces: W10618107)			Immediately	$ 247.71
5	W11736671		Spacer, Air Divider   (Replaces: W11647160)			Immediately	$ 72.09
6	W11598182		Retainer, Air Divider Glass   (Replaces: W11174095)			Immediately	$ 81.53
7	7101P42660		Screw		Appelez-nous	-
8	W11712405		Receiver, Hinge (left)   (Replaces: W11239070)			Immediately	$ 89.40
9	WPW10254050		Screw   (Replaces: W10254050)				$ 9.22
10	W11700313		Hinge, Door (left)   (Replaces: W11296036)			Immediately	$ 114.88
11	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 8.18
12	W11602624		Screw (black)   (Replaces: W11317731)			Immediately	$ 14.75
13	W11600222		Door Assembly (stainless)   (Replaces: W11295957)			Immediately	$ 1,037.07
14	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 14.81
15	W10909682		Badge   (Replaces: W10518672)			Immediately	$ 76.20
16	W11518518		Handle Assembly (stainless)   (Replaces: W11241572)				$ 231.75
17	W10846207		Handle Medallion (red)   (Replaces: W10551026)			Immediately	$ 23.14
18	W10920281		Screw   (Replaces: W10656499)			Immediately	$ 8.95
19	W11607071		Washer   (Replaces: W11501149)		Appelez-nous	-
	W11699927		Hinge, Door (right)   (Replaces: W11296037)			Immediately	$ 114.88
	W11712406		Receiver, Hinge (right)   (Replaces: W11239072)				$ 89.29
