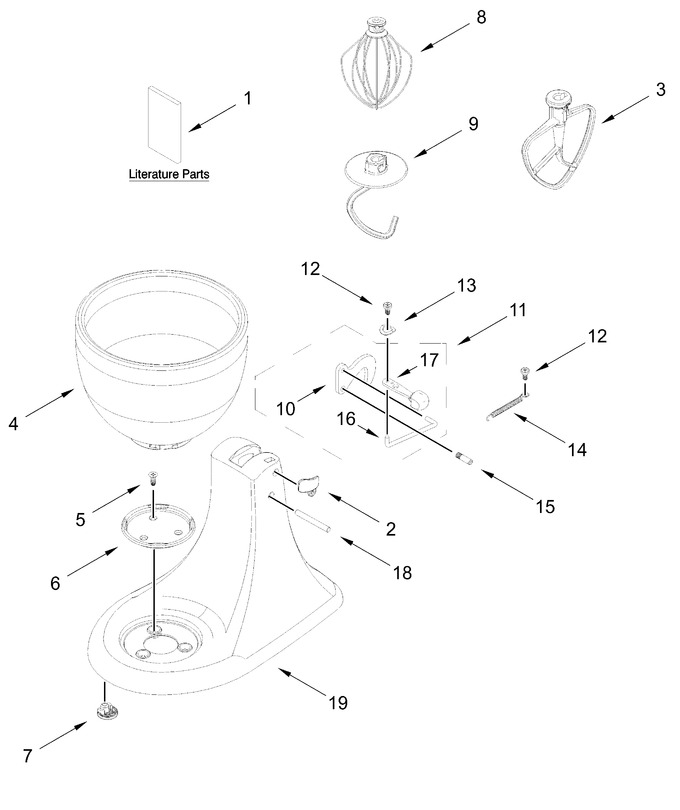

Base And Pedestal Unit Parts


Case, Gearing And Planetary Unit Parts


Color Variation Parts


Motor And Control Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	WP3184264		Headlock, Snap (black)   (Replaces: 3184264)				$ 8.20
3	W11305076		Beater, Flat (stainless)   (Replaces: W11179237)		Appelez-nous	-
4	W11734432		Bowl, 5 Qt Wood   (Replaces: W11575000)		Appelez-nous	-
5	W11544572		Screw   (Replaces: 3400020)				$ 8.41
6	WPW10191926		Cap, Bowl Screw   (Replaces: W10191926)			Immediately	$ 19.03
7	W11736697		Foot   (Replaces: W11626982)		Appelez-nous	-
8	W11324095		Whip, Wire   (Replaces: W11181074)		Appelez-nous	-
9	W11305078		Hook, Dough (stainless)   (Replaces: W11180585)		Appelez-nous	-
10	W11246352		Latch   (Replaces: 9709055)				$ 8.57
11	W11734433		Latch, Link Assembly (forbidden Forest)   (Replaces: W11641067)		Appelez-nous	-
12	6011-006971		Screw   (Replaces: 110679)			Immediately	$ 3.59
13	WP116241		Washer, Spring   (Replaces: 116241)				$ 5.19
14	W11188450		Spring, Lock Lever   (Replaces: W10509949)		Appelez-nous	-
15	W10802060		Screw   (Replaces: W10572158)				$ 5.21
16	W11232016		Link, Latch   (Replaces: 24450)				$ 7.83
17	W11734434		Lever, Latch (forbidden Forest)   (Replaces: W11629071)		Appelez-nous	-
18	WP16910		Pin, Hinge   (Replaces: 16910)			Immediately	$ 4.87
19	ARIF351B3E3172D8F6E1FEA9FF0E0167947		Pedestal		Appelez-nous	-
	W11634656		Use & Care Guide		Appelez-nous	-
	ARI0DDF5346BCACAC80EC1DAB9D24E9C0DA		(refer To Color Variation Parts Page)		Appelez-nous	-
