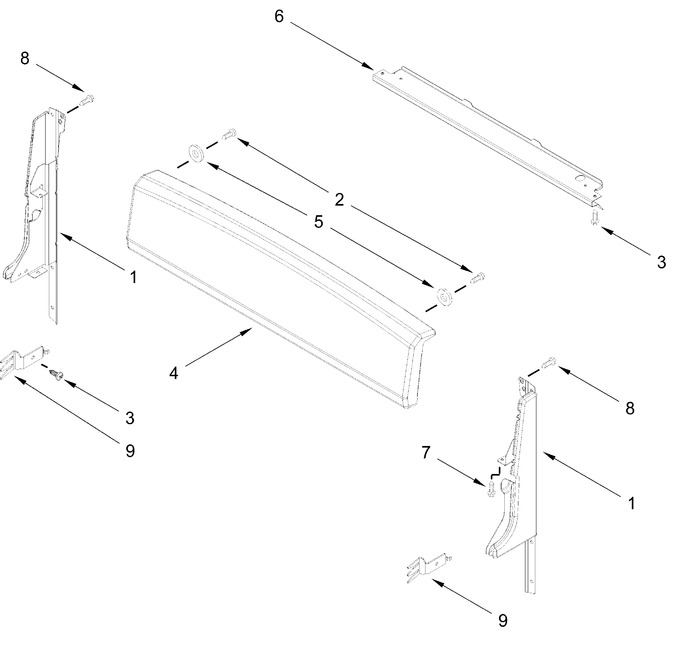

Backguard Parts
Broiler Parts
Chassis Parts
Cooktop Parts
Door Parts
Manifold Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10873441 | Endcap (white, Left Hand) |
|
- | |||||
| 2 | W11233072 | Screw (Replaces: 98005000) |
|
Immediately | $ 14.72 | ||||
| 3 | W10837731 | Screw (Replaces: W10493726) |
|
$ 8.30 | |||||
| 4 | W11688996 | Control, Panel (white) (Replaces: W11573720) |
|
$ 157.90 | |||||
| 5 | E12916 | Roldana Fibra |
|
- | |||||
| 6 | W10535746 | Bracket, Console Mount |
|
- | |||||
| 7 | WP98008544 | Screw (Replaces: 98008544) |
|
$ 13.87 | |||||
| 8 | WP98008545 | Screw (black) (Replaces: 98008545) |
|
$ 18.60 | |||||
| 9 | W10535815 | Bracket, Rear |
|
- | |||||
| W10873438 | Endcap (white, Right Hand) |
|
- |
