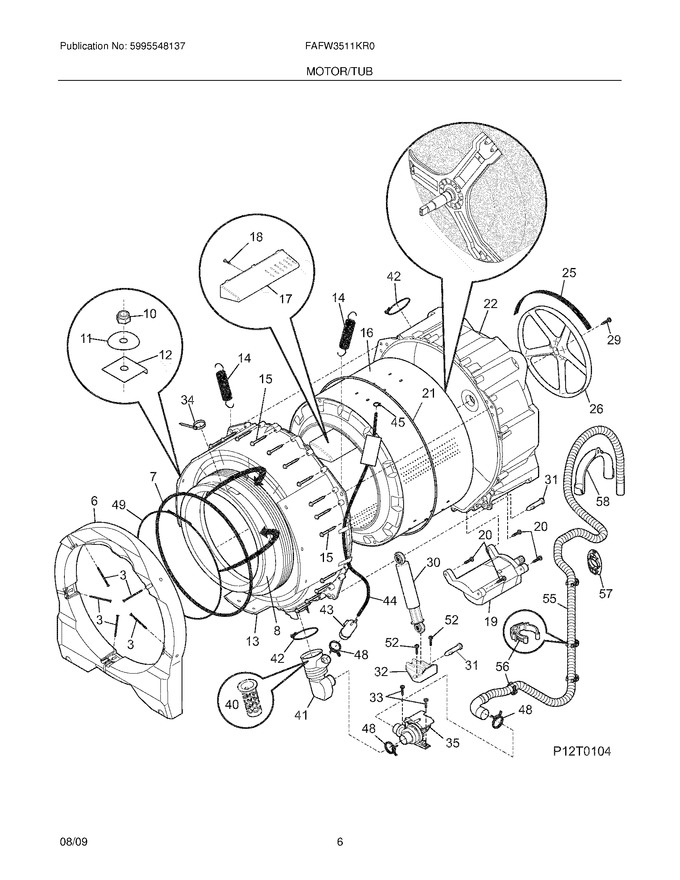

07 - Motor/tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	131793303		Bolt,carriage ,1/4-20 X 2.60				$ 15.27
6	134362200		Counterweight,front ,one Piece				$ 195.83
7	134365300		Spring,bellows Clamp ,retainer				$ 68.51
10	131304700		Nut,hex ,1/4-20 Unc-2b ,(2)				$ 8.14
11	131276900		Washer,bellville ,spring Steel				$ 24.10
12	134430600		Plate,counterweight				$ 10.40
13	134362000		Shell,tub ,front				$ 464.28
15	131303900		Screw,hex Washer Head ,1/4-10a X 2.165				$ 17.33
16	137105900		Drum Assy,spin Basket				$ 483.32
17	134361602		Vane Kit,drum				$ 134.15
18	131302800		Screw,10-16ab X 0.375			Immediately	$ 29.53
20	131303500		Screw,12-14ab X 1.50 ,motor Mtg.				$ 13.39
21	5304520351		O-ring,tub   (Replaces: 134361900)				$ 109.24
22	134507120		Shell,outer Tub ,rear ,with Bearing				$ 629.11
29	134408400		Screw,10.9 Class ,m10 X 25 Mm				$ 19.69
30	5304485917		Shock Absorber,assembly   (Replaces: 134560410)			Immediately	$ 50.49
31	131268300		Pin,shock Mtg.			Immediately	$ 14.18
32	134363200		Bracket,shock Mtg.				$ 21.26
33	134160900		Screw,washer Hd ,10-16ab X 0.75				$ 13.39
34	5304464772		Cable Tie,5.60 Inch   (Replaces: 5303321209)				$ 11.81
35	137221600		Pump,drain   (Replaces: 137108100)			Immediately	$ 210.23
40	134885800		Filter,pump				$ 7.25
41	134455900		Hose,coin Trap ,tub-to-pump			Immediately	$ 78.72
42	134737300		Clamp,hose				$ 22.37
43	137089000		Chamber,air   (Replaces: 134369000)				$ 143.33
44	137089000		Hose,air Pressure   (Replaces: 134369900)				$ 143.33
45	131306202		Clamp,hose				$ 11.63
48	5304536802		Clamp,hose ,wire   (Replaces: 131306234)			Immediately	$ 4.46
49	134527100		Clamp,bellows ,spring Held			Immediately	$ 49.50
52	131202300		Screw,10-16ab X 0.625			Immediately	$ 14.96
56	134781400		Fastener,hose Clip				$ 13.49
57	134641100		Bracket,drain Hose Mtg ,rear				$ 22.05
58	134440700		Hanger,drain Hose				$ 13.55
F14	137099300		Spring Assy,suspension				$ 172.46
F19	137043000		Motor,120 V   (Replaces: 134362500)				$ 478.50
F25	134051003		Belt,drive ,6-rib				$ 52.61
F26	134362600		Pulley,drum Drive ,large ,rear		Appelez-nous	-
F55	134889600		Hose,drain-one Piece				$ 80.73
F8	134515300		Bellows,boot ,no Light Hole   (Replaces: 134740900)			Immediately	$ 381.31
NI	137166900		Energy Guide		Appelez-nous	-
