SELECT A DIAGRAM
Chassis Parts

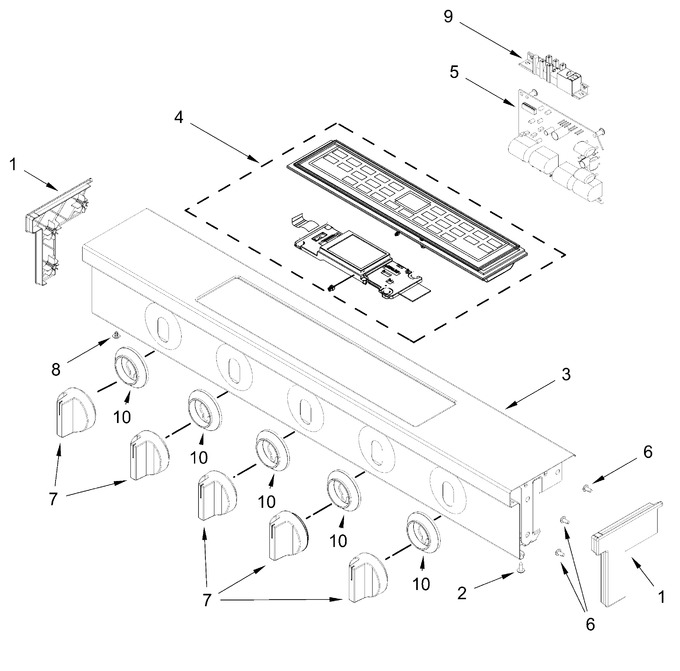

Control Panel Parts
Cooktop Parts
Door Parts
Drawer Parts
Manifold Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11770979 | Console, Endcap (black, Left) (Replaces: W11420182) |
|
$ 60.63 | |||||
| 2 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 3 | W11770977 | Panel, Control (black) (Replaces: W11698960) |
|
- | |||||
| 4 | W11812071 | Control, User Interface (Replaces: W11688270) |
|
$ 419.37 | |||||
| 5 | W10898291 | Module, Spark (Replaces: W10818365) |
|
Immediately | $ 329.08 | ||||
| 6 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 13.28 | ||||
| 7 | W11730481 | Knob (black) (Replaces: W11632048) |
|
- | |||||
| 8 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.92 | ||||
| 9 | W11703692 | Spark Module (Replaces: W11350452) |
|
Immediately | $ 86.99 | ||||
| 10 | W11730488 | Bezel (black) (Replaces: W11632250) |
|
- | |||||
| W11770980 | Console, Endcap (black, Right) (Replaces: W11420180) |
|
- |
