Chassis Parts
Control Panel Parts
Cooktop Parts
Door Parts
Drawer And Broiler Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

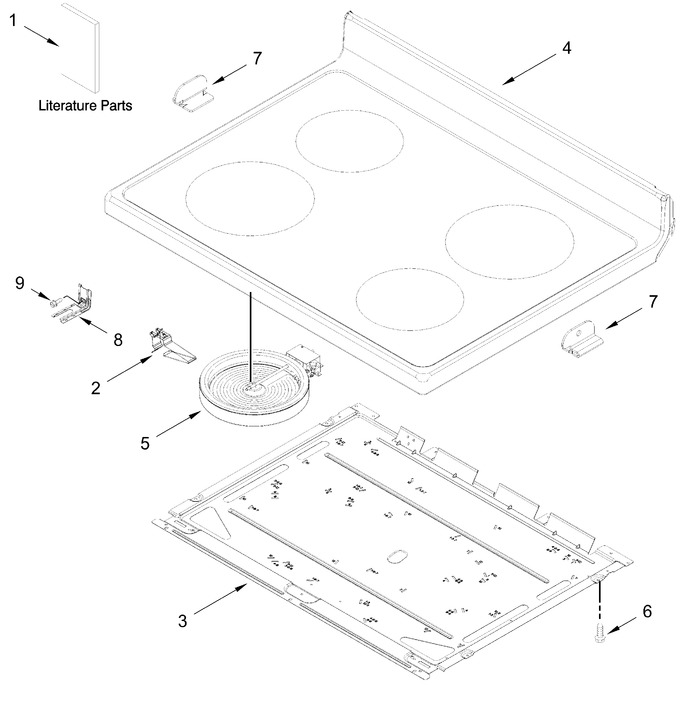

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11663556 | Spring, Element (Replaces: W11600012) |
|
Immediately | $ 13.36 | ||||
| 3 | W11728329 | Pan, Radiant Element (Replaces: W11640572) |
|
Immediately | $ 129.14 | ||||
| 4 | W10908094 | Cooktop (white) (Replaces: W10853443) |
|
$ 659.03 | |||||
| 5 | WP8273993 | Element (1800w) (Replaces: 8273993) |
|
Immediately | $ 258.96 | ||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 7 | W10607641 | Bracket, Cooktop (left) |
|
$ 30.17 | |||||
| 8 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 25.69 | ||||
| 9 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| W11596058 | Harness, Cooktop (right) (Replaces: W11134551) |
|
Immediately | $ 31.28 | |||||
| W11675846 | Harness, Cooktop (left) (Replaces: W11134603) |
|
$ 35.70 | ||||||
| W11746517 | Tech Sheet |
|
- | ||||||
| W11745519 | Quick Start Guide |
|
- | ||||||
| W11745404 | Owners, Manual |
|
- | ||||||
| W11750777 | Harness, Wire (main) (Replaces: W11648552) |
|
$ 190.78 | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W10607642 | Bracket, Cooktop (right) |
|
- | ||||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| W11517959 | Element (3000 And 1400w) (Replaces: W10275048) |
|
Immediately | $ 132.01 | |||||
| ARI2E962017DA4514642427E1A1F5A9C94C | (right Front, Left Rear) |
|
- | ||||||
| W11171119 | Element (1200w) (Replaces: W10248261) |
|
Immediately | $ 203.06 | |||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- |
