Chassis Parts
Control Panel Parts
Cooktop Parts
Door Parts
Drawer And Broiler Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

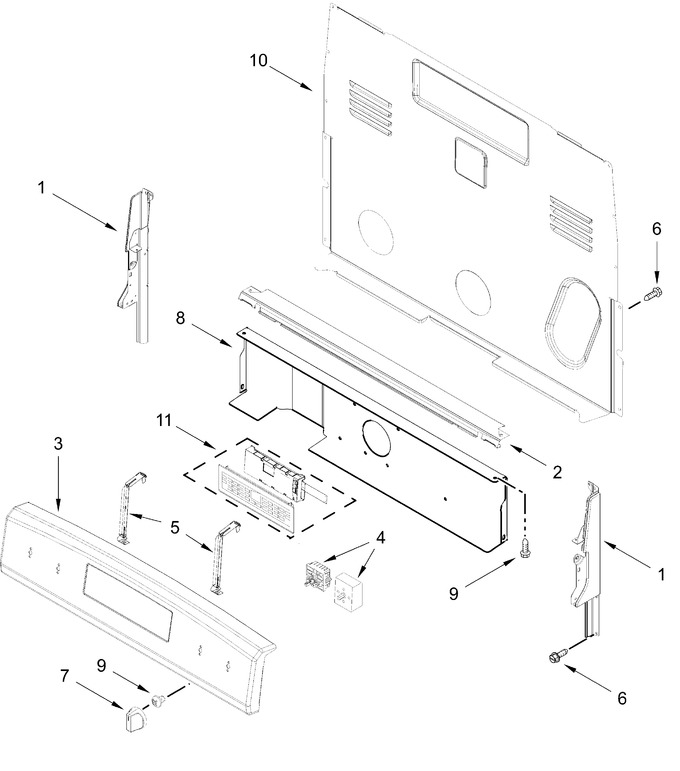

| 1 | W11219664 | Endcap (black, Left) (Replaces: W11130372) |
|
Immediately | $ 138.45 | ||||
| 2 | W10525121 | Bracket, Console Mounting |
|
$ 88.97 | |||||
| 3 | W11252790 | Panel, Console (black) (Replaces: W11157020) |
|
$ 312.34 | |||||
| 4 | 5500-287 | Switch, Infinite (Replaces: 3148951) |
|
Immediately | $ 49.03 | ||||
| 5 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 76.33 | ||||
| 6 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 7 | W11765129 | Knob, Infinite (black) (Replaces: W11742980) |
|
- | |||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | W11594204 | Control, Electronic (black Lcx) (Replaces: W11515098) |
|
Immediately | $ 335.23 | ||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| W11219665 | Endcap (black, Right) (Replaces: W11130379) |
|
Immediately | $ 40.65 | |||||
| ARI2E962017DA4514642427E1A1F5A9C94C | (right Front, Left Rear) |
|
- | ||||||
| 5500-287 | Switch, Infinite (green) (Replaces: 3148953) |
|
Immediately | $ 49.03 | |||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| WPW10434452 | Switch, Infinite (dual) (Replaces: W10434452) |
|
Immediately | $ 126.76 |
