Chassis Parts
Cooktop Parts
Door Parts
Drawer Parts
Manifold Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

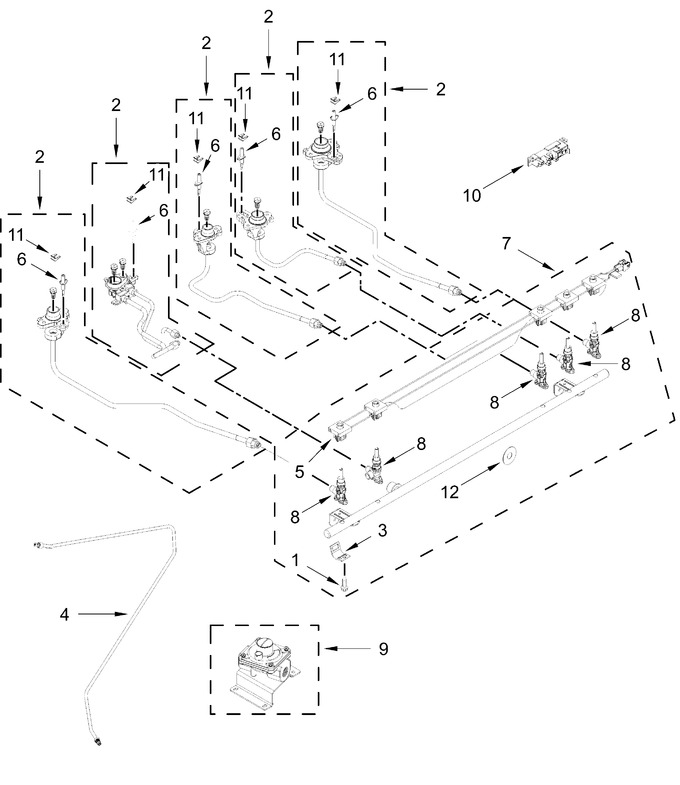

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10295997 | Screw, Valve |
|
$ 7.32 | |||||
| 2 | W11445309 | Holder Assembly, Gas Orifice (19k) (Replaces: W11186513) |
|
Immediately | $ 107.80 | ||||
| 3 | W10949105 | Bracket, Saddle Valve |
|
$ 22.75 | |||||
| 4 | W10552945 | Tube, Supply |
|
$ 94.24 | |||||
| 5 | W11376663 | Harness, Switch Spark (Replaces: W10432517) |
|
Immediately | $ 188.20 | ||||
| 6 | W11675301 | Electrode, Burner (Replaces: W10898387) |
|
Immediately | $ 35.31 | ||||
| 7 | W11679667 | Manifold Assembly (Replaces: W11356345) |
|
$ 387.83 | |||||
| 8 | W11109973 | Valve, Gas Duel (Replaces: W10432224) |
|
Immediately | $ 254.81 | ||||
| 9 | W10661850 | Regulator And Bracket, Assembly |
|
$ 131.25 | |||||
| 10 | W11703692 | Spark Module (Replaces: W11350452) |
|
Immediately | $ 96.65 | ||||
| 11 | W11684564 | Electrode, Spring (Replaces: W10827923) |
|
Immediately | $ 12.65 | ||||
| 12 | W10140571 | Seal, Switch Shaft |
|
$ 7.70 | |||||
| WPW10182767 | Tie, Manifold Wire (Replaces: W10182767) |
|
$ 7.30 | ||||||
| W11436985 | Lp Conversion Kit (Replaces: W11397194) |
|
Immediately | $ 46.55 | |||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| W11186526 | Holder Assembly, Gas Orifice (15k) |
|
Immediately | $ 99.68 | |||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| W11186509 | Holder Assembly, Gas Orifice (5k) |
|
$ 99.65 | ||||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| ARIFFDBDE6F28DFBFFE9EE4BEB364073DBD | (right Rear, Center) |
|
- | ||||||
| W11233561 | Valve, Gas (Replaces: W10566057) |
|
Immediately | $ 264.72 | |||||
| W11241561 | Valve, Gas (Replaces: W10566062) |
|
Immediately | $ 195.14 | |||||
| W10873134 | Valve, Gas (Replaces: W10831590) |
|
$ 272.65 | ||||||
| W11661897 | Electrode, Burner (Replaces: W10669523) |
|
$ 48.36 | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| ARI9CA4BFAE91A940FBF233DBE12DD115EE | (right Front, Center) |
|
- | ||||||
| W11643126 | Electrode, Burner (Replaces: W10669524) |
|
Immediately | $ 53.21 | |||||
| W11666003 | Electrode (Replaces: W10669525) |
|
$ 48.41 | ||||||
| ARI7A67B14AEA62F6D2A04BCF7D52CA12EE | (center) |
|
- | ||||||
| W11186518 | Holder Assembly, Gas Orifice (8k) |
|
$ 99.35 | ||||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| W11186522 | Holder Assembly, Gas Orifice (9.2k) |
|
Immediately | $ 99.30 |
