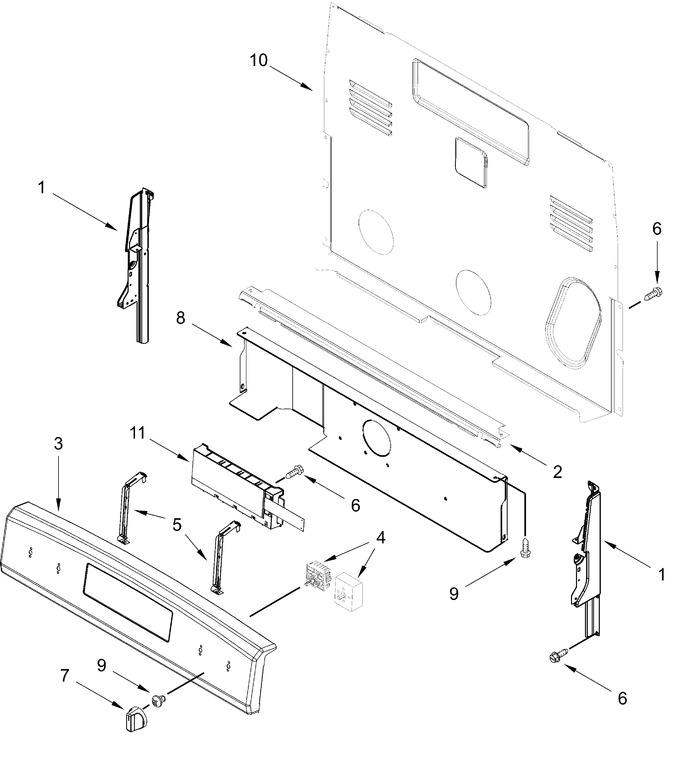

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white, Left) (Replaces: W11130371) |
|
$ 42.45 | |||||
| 2 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 3 | W11231950 | Panel, Control (white) (Replaces: W11157012) |
|
$ 135.98 | |||||
| 4 | WP3148952 | Switch, Infinite (yellow) (Replaces: 3148952) |
|
Immediately | $ 69.51 | ||||
| 5 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 84.81 | ||||
| 6 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 7 | W11765138 | Knob (white) (Replaces: W11742981) |
|
- | |||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W11602267 | Control, Electronic (white Lcx) (Replaces: W11515099) |
|
Immediately | $ 331.91 | ||||
| ARIB611E097F24A5B39CE73CD94D5F3EAC2 | (left Front, Right Rear) |
|
- | ||||||
| W11219370 | Endcap (white, Right) (Replaces: W11130378) |
|
$ 60.83 | ||||||
| ARI2E962017DA4514642427E1A1F5A9C94C | (right Front, Left Rear) |
|
- | ||||||
| WP3149400 | Switch, Infinite (orange) (Replaces: 3148954) |
|
Immediately | $ 90.51 |
