Control Panel Parts
Internal Oven Parts
Optional Parts (not Included)
Oven Door Parts
Oven Parts
SELECT A DIAGRAM
New Model Search:

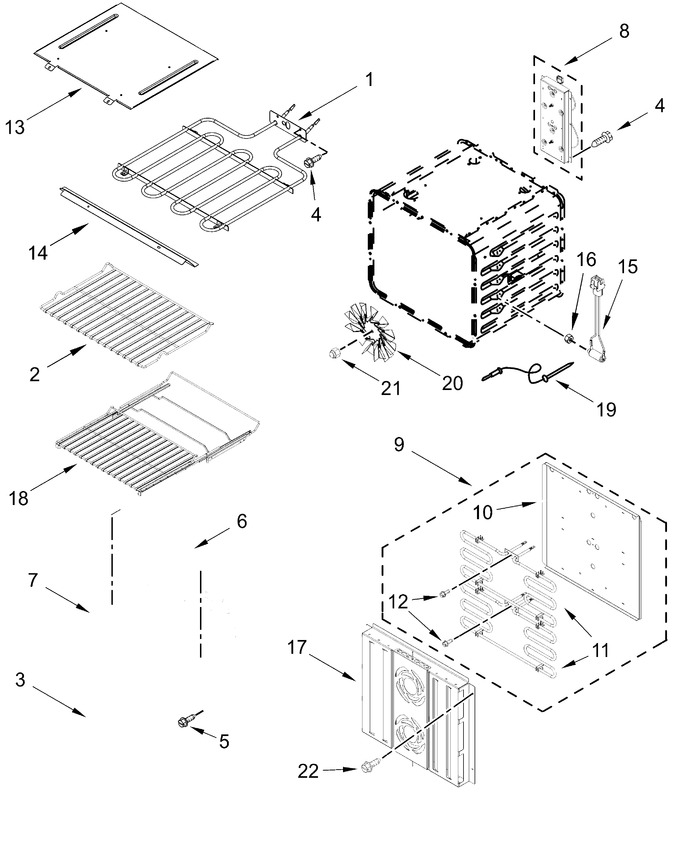

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11598122 | Element, Broil (Replaces: W11238159) |
|
$ 130.69 | |||||
| 2 | W11242906 | Rack, Oven |
|
$ 205.28 | |||||
| 3 | W10318198 | Tray, Hidden Bake |
|
$ 195.83 | |||||
| 4 | 7101P43460 | Screw |
|
- | |||||
| 5 | 7101P42660 | Screw |
|
- | |||||
| 6 | W10282957 | Crossbar, Hidden Bake Tray |
|
$ 47.47 | |||||
| 7 | W11545804 | Element, Bake (Replaces: W11292248) |
|
Immediately | $ 102.53 | ||||
| 8 | W11255349 | Convection Motor Assembly (Replaces: W11200176) |
|
Immediately | $ 413.26 | ||||
| 9 | W11098805 | Convection Element Assembly (Replaces: W10854021) |
|
$ 257.02 | |||||
| 10 | W10853277 | Shield, Convection |
|
$ 94.21 | |||||
| 11 | W10663735 | Element, Convection |
|
$ 308.60 | |||||
| 12 | WP489464 | Screw (Replaces: W10236129) |
|
Immediately | $ 8.38 | ||||
| 13 | W11598121 | Reflector, Broil (Replaces: W11235537) |
|
$ 62.19 | |||||
| 14 | W10588737 | Shield, Broil Front |
|
$ 105.40 | |||||
| 15 | W11821374 | Jack, Meat Probe (Replaces: W11252826) |
|
$ 77.18 | |||||
| 16 | WP9755546 | Nut, Hidden (Replaces: 9755546) |
|
$ 7.30 | |||||
| 17 | W11313747 | Baffle, Extended |
|
$ 238.76 | |||||
| 18 | W11256305 | Rack, Sliding |
|
$ 365.59 | |||||
| 19 | WP9755542 | Probe, Temperature (Replaces: 9755542) |
|
Immediately | $ 92.12 | ||||
| 20 | W11301887 | Blade, Convection Fan (Replaces: W10803141) |
|
Immediately | $ 353.84 | ||||
| 21 | W11548755 | Nut, Acorn (left Hand Thread) (Replaces: W11433702) |
|
$ 15.38 | |||||
| 22 | W10739592 | Screw |
|
- | |||||
| W10803140 | Nut, Acorn (right Hand Thread) |
|
$ 13.77 |
