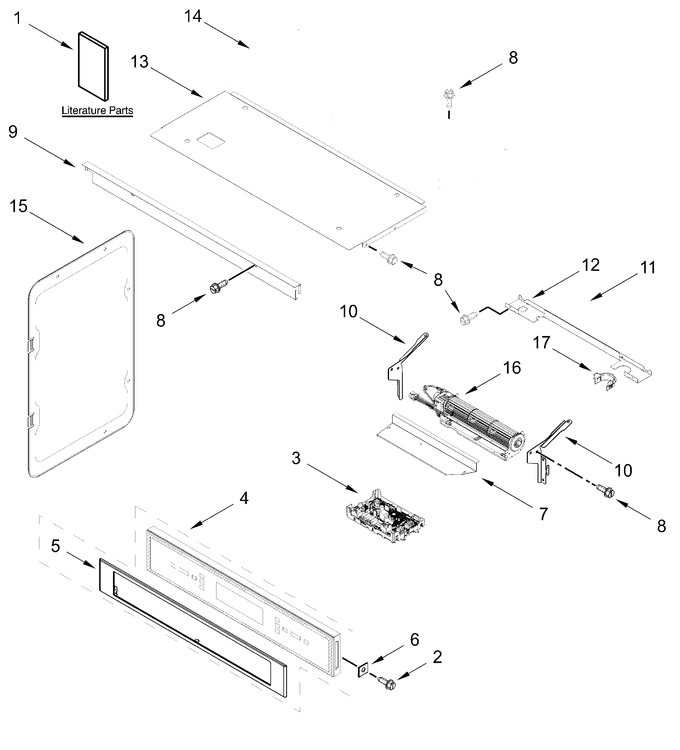

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11602625 | Screw (black) (Replaces: W11339492) |
|
$ 14.72 | |||||
| 3 | W11754857 | Appliance Manager (Replaces: W11734901) |
|
$ 405.10 | |||||
| 4 | W11767819 | Control Panel Assembly (stainless) (Replaces: W11641350) |
|
$ 1,477.52 | |||||
| 5 | W11197498 | Skin, Control Panel (stainless) |
|
Immediately | $ 374.84 | ||||
| 6 | WP4450118 | Nut (Replaces: 4450118) |
|
$ 8.78 | |||||
| 7 | W10681157 | Cover, Combo Blower |
|
- | |||||
| 8 | 7101P42660 | Screw |
|
- | |||||
| 9 | W10444127 | Cover, 30 In Compliment |
|
$ 130.73 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 12 | W11754858 | Divider, Chassis Back (Replaces: W11664750) |
|
- | |||||
| 13 | W11754859 | Cover, Top Front 30 In Chassis (Replaces: W11646291) |
|
- | |||||
| 14 | W10588732 | Cover, Top Back 30 In Chassis |
|
$ 225.86 | |||||
| 15 | W11754860 | Panel, Combo Chassis Side (Replaces: W11659057) |
|
- | |||||
| 16 | W11598119 | Blower (Replaces: W11397930) |
|
Immediately | $ 388.25 | ||||
| 17 | W11754861 | Guard, Wire (Replaces: W11691737) |
|
- | |||||
| W10655462 | Bracket, Blower (right) |
|
- | ||||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | ||||||
| W11727826 | Harness, Door Latch (Replaces: W11264646) |
|
$ 61.80 | ||||||
| W11555167 | Harness, Communication |
|
$ 69.94 | ||||||
| W11754868 | Harness, Signal (Replaces: W11476492) |
|
- | ||||||
| W11754862 | Harness, Main (Replaces: W11476491) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11754869 | Bag, Hardware (Replaces: W11705814) |
|
- | ||||||
| W11692473 | Owner's Manual |
|
- | ||||||
| W11692475 | Quick Start Guide |
|
- | ||||||
| W11698455 | Tech Sheet |
|
- | ||||||
| 4448664 | Clamp, Conduit |
|
$ 21.41 | ||||||
| 4450800 | Screw, Grounding |
|
$ 13.47 | ||||||
| W11226264 | Strap, Ground |
|
- | ||||||
| W11754867 | Harness, Main Lower Mwo (Replaces: W11706181) |
|
$ 146.29 | ||||||
| W11754866 | Harness, Main Upper Mwo (Replaces: W11476494) |
|
Immediately | $ 267.48 | |||||
| W11754865 | Harness, Comm And Eol (Replaces: W11476493) |
|
- | ||||||
| W11754864 | Harness, Inverter (Replaces: W11476511) |
|
- | ||||||
| W11754863 | Harness, Fan And Turntable (Replaces: W11476496) |
|
- |
