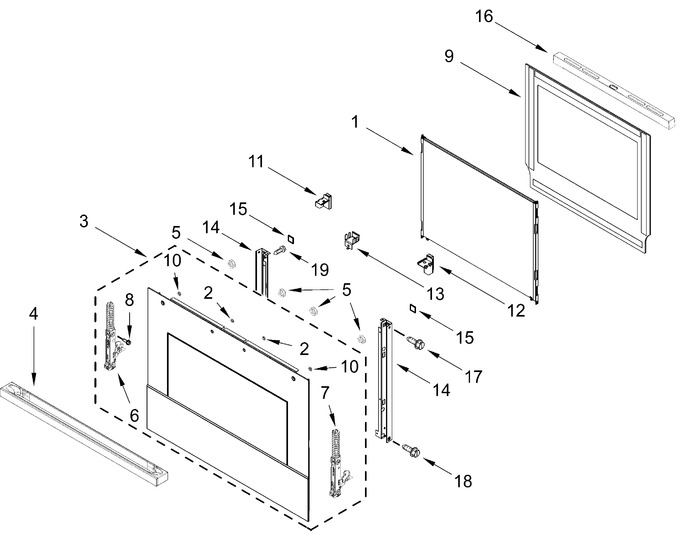

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11600213		Air Divider Assembly   (Replaces: W11304273)			Immediately	$ 575.43
2	W11132942		Spacer, Handle				$ 16.83
3	W11776058		Outer Door Assembly (stainless)   (Replaces: W11691769)				$ 1,578.38
4	W11411894		Door Handle (stainless)				$ 1,067.98
5	W11602632		Nut   (Replaces: W11317741)		Appelez-nous	-
6	W11754872		Hinge, Door (left)   (Replaces: W11693140)				$ 172.29
7	W11754873		Hinge, Door (right)   (Replaces: W11693141)		Appelez-nous	-
8	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 8.18
9	W11602610		Glass Cavity Assembly   (Replaces: W11260091)				$ 592.35
10	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 14.81
11	W11598130		Bracket, Glass (left)   (Replaces: W11302803)			Immediately	$ 46.95
12	W11598128		Bracket, Glass (right)   (Replaces: W11302802)			Immediately	$ 46.95
13	W11598131		Bracket, Glass Reinforcement   (Replaces: W11302954)				$ 13.72
14	W11598126		Rail, Door (left)   (Replaces: W11302773)				$ 43.61
15	WPW10517428		Spacer, Vent   (Replaces: W10517428)			Immediately	$ 12.44
16	W11705878		Top Vent Trim Assembly   (Replaces: W11671363)			Immediately	$ 333.41
17	WP694091		Screw   (Replaces: 694091)				$ 7.55
18	W11617225		Screw   (Replaces: W11290045)				$ 14.77
19	W10443110		Screw			Immediately	$ 15.25
	W11598127		Rail, Door (right)   (Replaces: W11302780)				$ 43.61
