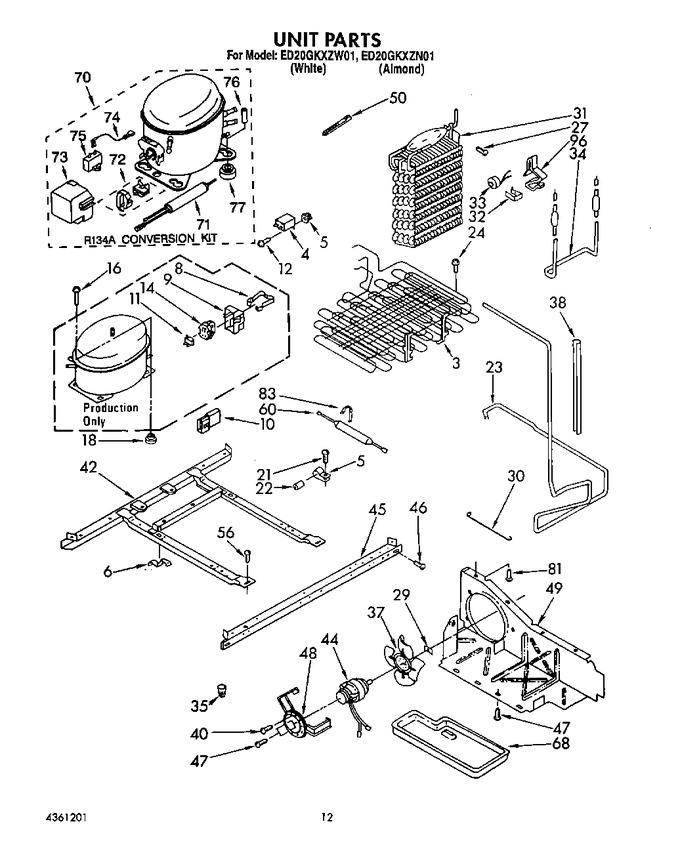

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	1127573		Condenser		Appelez-nous	-
4	2154565		Capacitor, Run		Appelez-nous	-
5	510716		Clamp (2)		Appelez-nous	-
6	548744		Clip (2)		Appelez-nous	-
8	938384		Strap, Cover		Appelez-nous	-
9	1108115		Cover		Appelez-nous	-
10	1118850		Housing Plug		Appelez-nous	-
11	2154781		Overload		Appelez-nous	-
12	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.06
14	WP2262181		Relay   (Replaces: 1108143)				$ 122.65
16	876811		Screw, 1/4-28 X 1 (4)   (Replaces: 489373)				$ 7.42
18	876811		Grommet (4)   (Replaces: 1100826)				$ 7.42
21	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488649)				$ 21.16
22	510769		Dampener		Appelez-nous	-
23	1127577		Exchanger, Heat		Appelez-nous	-
24	488624		Screw (4)		Appelez-nous	-
27	488624		Screw, 8 X 1/2		Appelez-nous	-
29	WP486692		Nut, Speed   (Replaces: 486692)				$ 7.82
30	1105612		Guard, Fan				$ 40.58
31	1106987		Evaporator		Appelez-nous	-
32	513584		Clamp		Appelez-nous	-
33	WP4387499		Bimetal, Defrost   (Replaces: 2154544)				$ 120.86
34	2154542		Heater, Defrost		Appelez-nous	-
35	227991		Wire Connector		Appelez-nous	-
37	1108179		Blade, Fan				$ 49.54
38	1114634		Sleeve		Appelez-nous	-
40	681390		Screw, 8-32 X 3/8 (3)   (Replaces: 489019)				$ 13.06
42	1127942		Frame		Appelez-nous	-
44	833697		Motor, Fan   (Replaces: 2149963)			Immediately	$ 88.15
45	2149717		Rail, Front		Appelez-nous	-
46	489340		Screw		Appelez-nous	-
47	488624		Screw, 8 X 3/8		Appelez-nous	-
48	548695		Bracket, Fan Motor		Appelez-nous	-
49	1127938		Air, Baffle		Appelez-nous	-
50	851095		Strap		Appelez-nous	-
56	WP489427		Screw   (Replaces: 489339)				$ 7.47
60	W10843121		Drier   (Replaces: 1105550)			Immediately	$ 52.57
68	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
70	876765		Tube Kit			Immediately	$ 86.33
70	4388005		Compressor (includes Items 71, 72, 73, 74, 75, 76, & 77) (also Order		Appelez-nous	-
71	W10843121		Drier   (Replaces: 4387019)			Immediately	$ 52.57
72	4387535		Overload/relay Asy   (Replaces: 4387767)				$ 181.95
73	WP2162358		Cover, Terminal   (Replaces: 4387731)				$ 90.75
74	WP2172890		Wire, Capacitor   (Replaces: 2172890)				$ 8.10
75	WP4387764		Capacitor   (Replaces: 4387764)				$ 177.04
76	4387559		Sleeve		Appelez-nous	-
77	WP4387558		Grommet   (Replaces: 4387558)				$ 6.95
81	WP489464		Screw, 8-32 X 1/2   (Replaces: 489337)			Immediately	$ 7.83
83	1127590		Clamp, Dryer		Appelez-nous	-
96	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
96	1108431		Clamp (4)		Appelez-nous	-
96	978026		Valve, Access (5/16``)			Immediately	$ 128.09
96	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
96	978028		Valve, Access (1/2)		Appelez-nous	-
96	978029		Valve Access (5/8``)				$ 93.85
96	978030		Valve, Access (3/4``)				$ 130.71
96	876764		Valve, Access(3/16``)			Immediately	$ 91.35
