SELECT A DIAGRAM

Basket And Tub Parts


Controls And Water Inlet Parts


Gearcase, Motor And Pump Parts


Optional Parts (not Included)


Top And Cabinet Parts

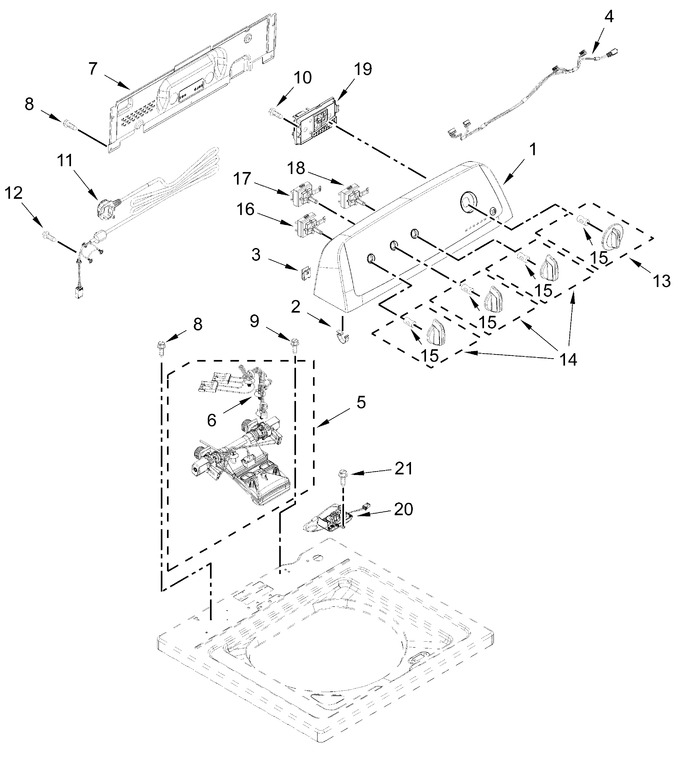

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11401126		Panel, Console   (Replaces: W11370830)		Appelez-nous	-
2	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
3	W11213336		U-nut   (Replaces: W10298336)				$ 8.13
4	W10694671		Harness, Upper				$ 190.60
5	W11038628		Water Inlet Assembly   (Replaces: W11026622)				$ 244.90
6	W10917060		Harness, Valve		Appelez-nous	-
7	W10409320		Panel, Console Rear Cover				$ 263.79
8	W11685943		Screw   (Replaces: W10660565)				$ 14.97
9	WPW10213953		Screw   (Replaces: W10213953)			Immediately	$ 7.55
10	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 8.20
11	W11358903		Cord, Power (british)		Appelez-nous	-
12	WPW10109200		Screw   (Replaces: 8533943)			Immediately	$ 8.80
13	WPW10711289		Timer Knob Assembly (white)   (Replaces: W10711289)			Immediately	$ 8.33
14	WPW10453947		Control Knob Assembly (white)   (Replaces: W10453947)				$ 54.76
15	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
16	WPW10414397		Switch, Rotary Encoder (3 Position)   (Replaces: W10414397)				$ 136.10
17	WPW10414398		Switch, Rotary Encoder (4 Position)   (Replaces: W10414398)				$ 199.56
18	W11168256		Switch, Rotary Encoder (2 Position)   (Replaces: W10414381)			Immediately	$ 219.11
19	W11608071		Machine And Motor Control Unit Assembly   (Replaces: W11578938)		Appelez-nous	-
20	W11254883		Line Filter Assembly   (Replaces: W10906191)		Appelez-nous	-
21	W11568617		Screw   (Replaces: W10567155)				$ 14.72

    View Diagram in Separate Window       Print Part List
