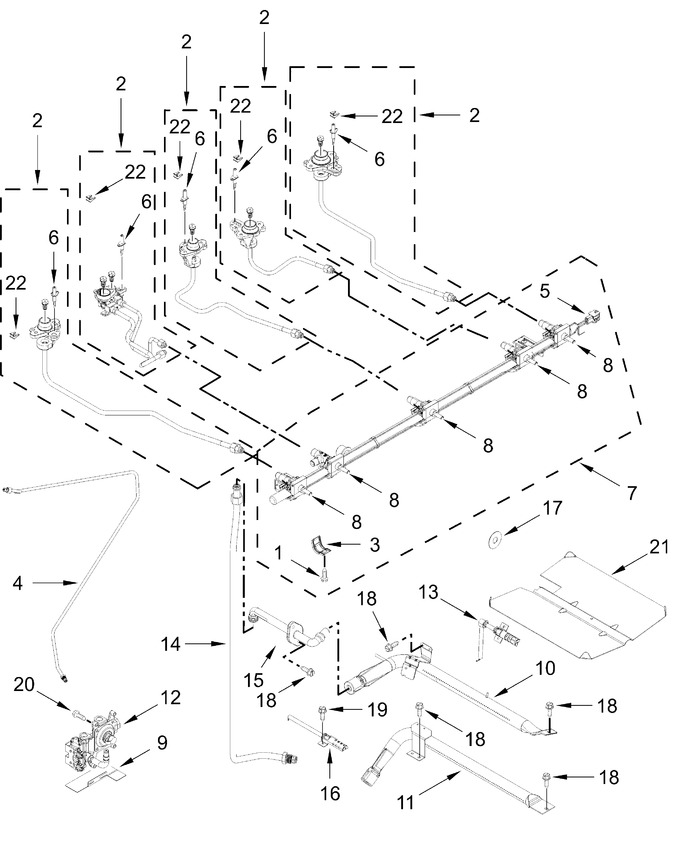

Manifold Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10295997 | Screw, Valve |
|
$ 6.59 | |||||
| 2 | W11445309 | Orifice Assembly (19k) (Replaces: W11186513) |
|
Immediately | $ 97.02 | ||||
| 3 | W10949105 | Bracket, Saddle Valve |
|
$ 20.48 | |||||
| 4 | W10432252 | Tube, Gas Supply |
|
$ 74.44 | |||||
| 5 | W11376663 | Harness, Switch Spark (Replaces: W10432517) |
|
Immediately | $ 169.38 | ||||
| 6 | W11675301 | Electrode, Burner (Replaces: W10898387) |
|
Immediately | $ 33.36 | ||||
| 7 | W11679667 | Manifold Assembly (Replaces: W11356345) |
|
$ 349.05 | |||||
| 8 | W11109973 | Valve, Gas Duel (Replaces: W10432224) |
|
Immediately | $ 229.33 | ||||
| 9 | W10224921 | Bracket, Aegis |
|
- | |||||
| 10 | W11676566 | Burner, Broiler (Replaces: W10439242) |
|
$ 85.48 | |||||
| 11 | W10764654 | Burner, Bake (Replaces: W10680035) |
|
Immediately | $ 82.49 | ||||
| 12 | W10861656 | Valve, Regulator (Replaces: W10554066) |
|
Immediately | $ 316.13 | ||||
| 13 | WPW10324262 | Igniter, Bake (Replaces: W10324262) |
|
Immediately | $ 103.79 | ||||
| 14 | W10306050 | Tube, Broil Supply (broiler Fitting To Valve) |
|
$ 170.84 | |||||
| 15 | W10583216 | Fitting, Broil Burner |
|
$ 86.27 | |||||
| 16 | WPW10333842 | Electrode, Broil (Replaces: W10333842) |
|
Immediately | $ 98.39 | ||||
| 17 | W10140571 | Seal, Switch Shaft |
|
$ 6.93 | |||||
| 18 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 19 | W11684507 | Screw (Replaces: 3196385) |
|
$ 12.84 | |||||
| 20 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.55 | |||||
| 21 | 3601P33645 | Baffle, Broil Burner |
|
- | |||||
| 22 | W11684564 | Electrode, Spring (Replaces: W10827923) |
|
Immediately | $ 11.39 | ||||
| ARI7A67B14AEA62F6D2A04BCF7D52CA12EE | (center) |
|
- | ||||||
| W11087486 | Lp Conversion Kit (bake And Broil) (Replaces: W10566535) |
|
Immediately | $ 106.16 | |||||
| W11643126 | Electrode, Burner (Replaces: W10669524) |
|
Immediately | $ 47.89 | |||||
| W11666003 | Electrode, Burner (Replaces: W10669525) |
|
$ 43.57 | ||||||
| WPW10182767 | Tie, Manifold Wire (Replaces: W10182767) |
|
$ 6.57 | ||||||
| W11186518 | Orifice Assembly (8k) |
|
$ 89.42 | ||||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| W11186522 | Orifice Assembly (9.2k) |
|
Immediately | $ 89.37 | |||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| W11186526 | Orifice Assembly (15k) |
|
Immediately | $ 89.71 | |||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| W11186509 | Orifice Assembly (5k) |
|
Immediately | $ 89.69 | |||||
| W11436985 | Lp Conversion Kit (burners) (Replaces: W11397194) |
|
Immediately | $ 41.90 | |||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| ARI02A2D02EE64F6B7820BBC4A10A38B319 | (right Rear, Center) |
|
- | ||||||
| W11233561 | Valve, Gas (Replaces: W10566057) |
|
Immediately | $ 238.25 | |||||
| W11241561 | Valve, Gas (Replaces: W10566062) |
|
Immediately | $ 184.40 | |||||
| W10873134 | Valve, Gas (Replaces: W10831590) |
|
$ 245.39 | ||||||
| W11661897 | Electrode, Burner (Replaces: W10669523) |
|
$ 43.52 | ||||||
| ARI59533660F9AB0B0BC7E501CA04F08592 | (right Front, Center) |
|
- |
