SELECT A DIAGRAM

Chassis Parts


Door Parts


Drawer Parts


Optional Parts (not Included)

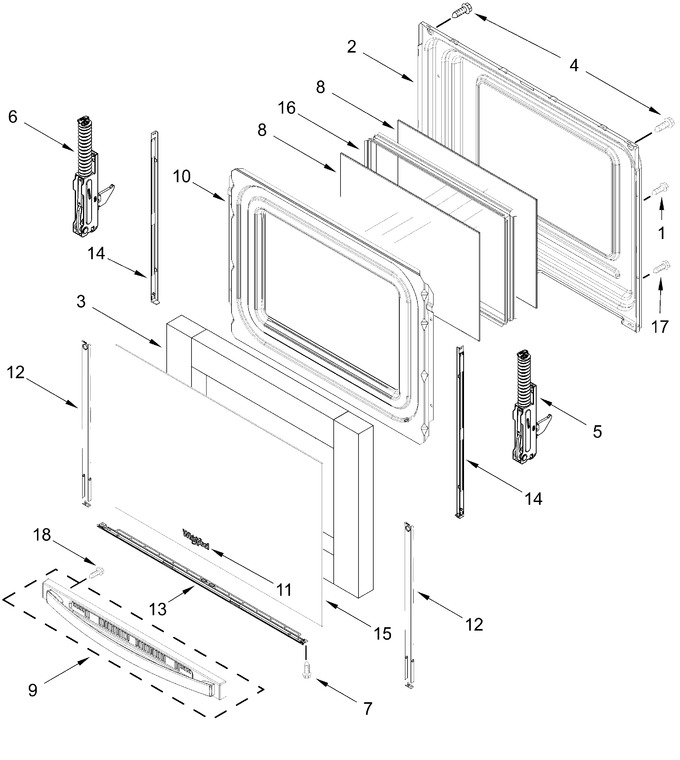

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
2	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 372.89
3	WPW10278991		Insulation, Door Strip   (Replaces: W10278991)			Immediately	$ 101.37
4	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 8.24
5	WPW10440013		Hinge, Door (active)   (Replaces: W10388635)			Immediately	$ 63.80
6	WPW10440013		Hinge, Door (active)   (Replaces: W10440013)			Immediately	$ 63.80
7	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.80
8	WP8053948		Glass, Inner   (Replaces: 9758162)				$ 232.06
9	W11726508		Handle And Vent Assembly (black Stainless)   (Replaces: W11353056)				$ 238.37
10	W11539580		Retainer, Insulation   (Replaces: W11380222)				$ 233.31
11	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 63.13
12	W10761018		Trim, Door Side (black, Left)   (Replaces: W10746436)			Immediately	$ 54.80
13	W11569689		Trim, Bottom Door (black)   (Replaces: W11444043)			Immediately	$ 60.08
14	W11502236		Strap, Door   (Replaces: W11379944)			Immediately	$ 27.68
15	W11741357		Glass, Outer Door (black)   (Replaces: W11729636)				$ 181.56
16	WPW10316950		Frame, Glass   (Replaces: W10316950)			Immediately	$ 90.09
17	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
18	W10896982		Screw   (Replaces: W10465158)				$ 8.40
	W10761014		Trim, Door Side (black, Right)   (Replaces: W10746435)			Immediately	$ 72.96

    View Diagram in Separate Window       Print Part List
