Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11333179 Panel, Cabinet Side (left)   (Replaces: W11106881) Special Order $ 419.69

2 W11378584 Orifice Holder Assembly   (Replaces: W10892774) In-Stock Immediately $ 123.97

3 W11643164 Orifice, Main (17.4k)   (Replaces: W10892422) In-Stock Immediately $ 60.97

4 W11573760 Igniter   (Replaces: W11238757) In-Stock Immediately $ 23.48

5 W11380124 Burner, Grate (with Wok Ring)   (Replaces: W11291183) In-Stock Immediately $ 200.19

6 W11380128 Burner, Grate   (Replaces: W11291179) In-Stock Immediately $ 183.04

7 W11643628 Screw   (Replaces: W11323261) Special Order $ 14.75

8 W11320149 Barrier, Appliance Manager   (Replaces: W11281269) Special Order $ 130.57

9 W11492297 User Interface   (Replaces: W11436332) Special Order $ 399.40

10 W11320411 Cover, Wifi Outer   (Replaces: W11205795) Appelez-nous -
11 W11380145 Bezel (rear Burners)   (Replaces: W10883433) Special Order $ 65.07

12 W11380146 Bezel (front Burners)   (Replaces: W10881642) Special Order $ 65.07

13 W11344538 Cap, Burner (black, Set Of 6)   (Replaces: W11121390) In-Stock Immediately $ 141.29

14 W11344539 Spreader, Flame   (Replaces: W10891746) In-Stock Immediately $ 141.16

15 W11318207 Spring Clip, Range   (Replaces: W11036559) Special Order $ 12.88

16 W11567541 Knob, Oven Mode (stainless)   (Replaces: W11500863) Appelez-nous -
17 W11385634 Manager, Appliance (powermax)   (Replaces: W11100280) In-Stock Immediately $ 333.66

18 3196265 Screw   (Replaces: 3400099) Appelez-nous -
19 W11318855 Antenna, Wifi   (Replaces: W11130078) Special Order $ 228.92

20 7101P33860 Screw Appelez-nous -
21 W10130760 Bracket, Moving Console (left) Special Order $ 75.94

22 W11509770 Screw   (Replaces: W11328357) Special Order $ 14.23

23 W11728201 Panel, Console   (Replaces: W11700785) In-Stock Immediately $ 1,053.27

24 W11380561 Knob, Single (stainless)   (Replaces: W10912166) In-Stock Immediately $ 81.20

25 W11380562 Knob, Dual (stainless)   (Replaces: W10883172) Special Order $ 79.24

26 W10896366 Light Pipe Assembly Special Order $ 108.38

27 W11548484 Bezel, Oven (stainless)   (Replaces: W11500871) Special Order $ 61.19

28 W11548477 Knob, Oven Temperature (stainless)   (Replaces: W11500868) Special Order $ 149.89

29 W11320410 Cover, Wifi Inner   (Replaces: W11205794) Appelez-nous -
30 W11241511 Button Assembly, Oven Light In-Stock Immediately $ 46.19

31 W11156416 Trim, Island Special Order $ 249.31

32 W10271524 Trim, T-strip (black) Special Order $ 212.34

33 7101P42660 Screw Appelez-nous -
34 W11241510 Button Assembly, Oven Start In-Stock Immediately $ 48.76

35 WP3400814 Screw   (Replaces: 3400814) Special Order $ 4.62

36 7101P62460 Screw Appelez-nous -
37 W11550692 Bumper, Grate   (Replaces: W11042504) In-Stock Immediately $ 12.57

38 W11234290 Wifi Module Assembly   (Replaces: W11110768) Special Order $ 179.89

39 W11123146 Speaker Assembly   (Replaces: W10568405) Special Order $ 80.93

40 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.95

41 W11344755 Panel, Left Cooktop (black)   (Replaces: W11038235) Special Order $ 199.76

42 W11344757 Panel, Center Cooktop (black)   (Replaces: W11038257) Special Order $ 199.76

43 W11344761 Panel, Right Cooktop (black)   (Replaces: W11038248) Special Order $ 199.76

W11344742 Spreader, Flame   (Replaces: W10891974) In-Stock Immediately $ 134.12

ARI1CEA8328406821DB8179A8C971BDB5B4 (left Rear, Right Rear) Appelez-nous -
W11384767 Orifice Holder Assembly   (Replaces: W10892725) Special Order $ 119.64

ARI9E076A4EB9AA7BF3DBA6ED9D0C1B5D12 (center Rear) Appelez-nous -
W11334712 Orifice Holder Assembly   (Replaces: W10892731) In-Stock Immediately $ 71.63

ARIA12C7E5D311C54B1AACBC1820DF34957 (right Front) Appelez-nous -
W11384765 Orifice Holder Assembly   (Replaces: W10892477) Special Order $ 120.49

ARI283693F3486669333C7F1EE938CD8A5B (right Rear) Appelez-nous -
ARI68146C2FADA8E1AE3122F181AC9275E2 (left Front, Right Front) Appelez-nous -
W11661909 Orifice, Simmer (2.6k)   (Replaces: W10892435) In-Stock Immediately $ 74.14

W11672510 Orifice, Main (15k)   (Replaces: W10892419) In-Stock Immediately $ 107.87

ARID5FC0C9D80A03900EBB467174EE74F38 (left Rear, Center Front, Right Rear) Appelez-nous -
W11678580 Screw   (Replaces: W11323309) Special Order $ 14.78

W10892438 Orifice, Simmer (5k) Special Order $ 99.86

W11628654 Igniter   (Replaces: W10892340) In-Stock Immediately $ 54.92

ARI88E426939977D33DD3457E2E56EFBF85 (center Front, Center Rear) Appelez-nous -
W11114379 Igniter In-Stock Immediately $ 66.44

W10130759 Bracket, Moving Console (right) Special Order $ 75.94

W11344746 Spreader, Flame   (Replaces: W10891978) In-Stock Immediately $ 133.20

W11333303 Panel, Cabinet Side (right)   (Replaces: W11106880) Special Order $ 421.41

ARI76BF577D359F4F7B6AC1C45BB9FB0006 (left Front) Appelez-nous -
W11384764 Orifice Holder Assembly   (Replaces: W10892492) Special Order $ 119.91

ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 (left Rear) Appelez-nous -
W11384766 Orifice Holder Assembly   (Replaces: W11159467) Special Order $ 121.19

ARI5D10814EA01143EB5BE4EE5A9E8F71F6 (center Front) Appelez-nous -

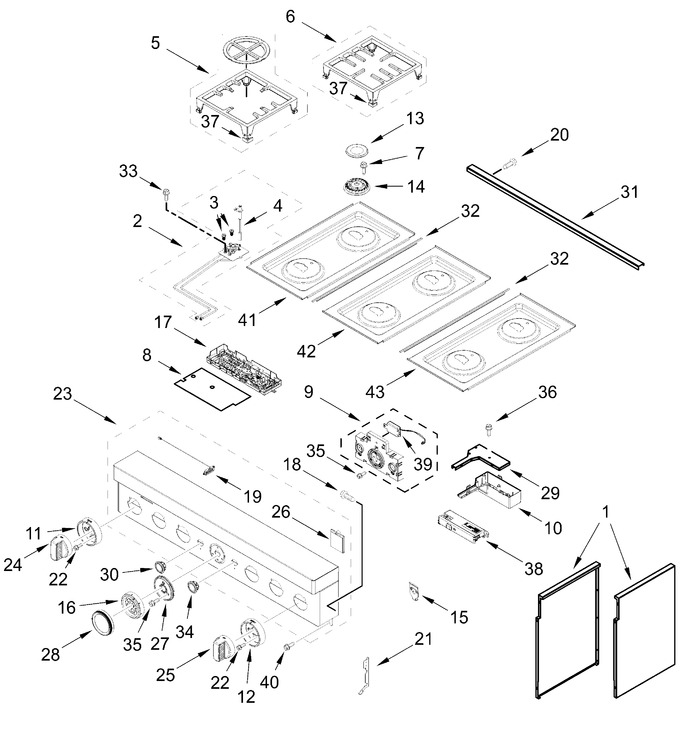

    View Diagram in Separate Window     Print Icon   Print Part List
