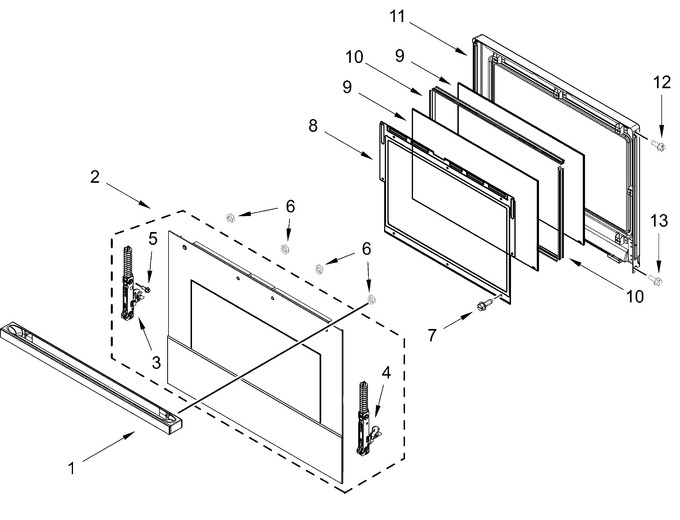

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11411894 | Door Handle (stainless) |
|
$ 1,067.98 | |||||
| 2 | W11776058 | Outer Door Assembly (stainless) (Replaces: W11668441) |
|
$ 1,578.38 | |||||
| 3 | W11768714 | Hinge, Door (left) (Replaces: W11689620) |
|
- | |||||
| 4 | W11768718 | Hinge, Door (right) (Replaces: W11689621) |
|
- | |||||
| 5 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 8.18 | ||||
| 6 | W11602632 | Nut (Replaces: W11317741) |
|
- | |||||
| 7 | 7101P42660 | Screw |
|
- | |||||
| 8 | W11598182 | Retainer, Air Divider Glass (Replaces: W11174095) |
|
Immediately | $ 81.53 | ||||
| 9 | WPW10618107 | Glass, Inner (Replaces: W10618107) |
|
$ 247.71 | |||||
| 10 | W11736671 | Spacer, Air Divider (Replaces: W11647160) |
|
Immediately | $ 72.09 | ||||
| 11 | W11768649 | Liner Assembly (Replaces: W11302587) |
|
Immediately | $ 303.81 | ||||
| 12 | 7101P37560 | Screw |
|
- | |||||
| 13 | W11617225 | Screw (Replaces: W11290045) |
|
$ 14.77 |
