SELECT A DIAGRAM

Chassis Parts


Control Panel Parts


Cooktop Parts


Door Parts


Drawer And Broiler Parts


Optional Parts (not Included)

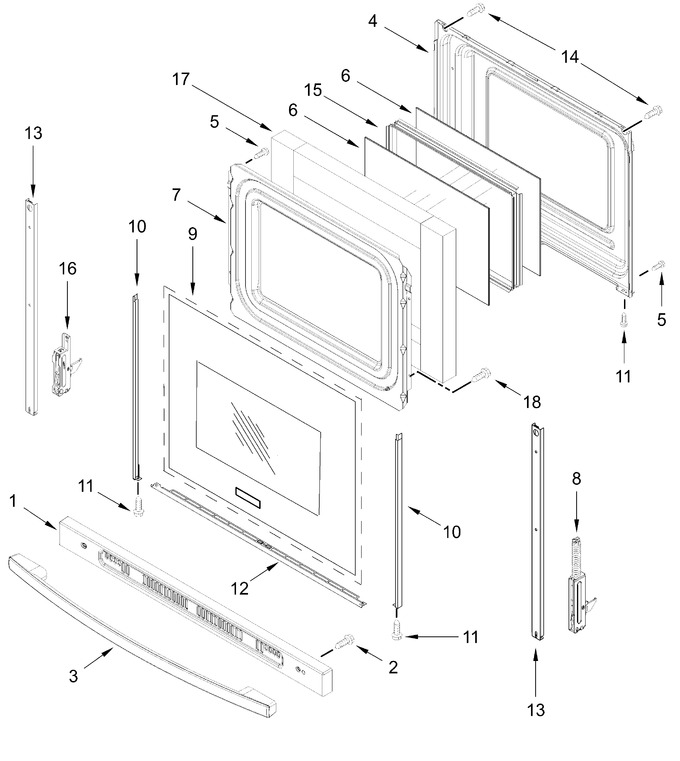

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10310922		Trim, Top Vent (black)   (Replaces: W10310922)			Immediately	$ 175.37
2	WPW10465148		Screw   (Replaces: W10465148)			Immediately	$ 8.79
3	W10300490		Handle, Door (black)			Immediately	$ 156.75
4	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 372.89
5	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
6	WP8053948		Glass, Inner   (Replaces: 9758162)				$ 178.28
7	W11539580		Retainer, Insulation   (Replaces: W11380222)				$ 233.31
8	WPW10299226		Hinge, Active   (Replaces: W10299226)			Immediately	$ 72.76
9	W11770962		Glass, Outer Door (black With Brand Logo )   (Replaces: W11743061)		Appelez-nous	-
10	W10761018		Trim, Door Side (black, Left)   (Replaces: W10746436)			Immediately	$ 53.77
11	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.80
12	W11569689		Trim, Bottom Door (black)   (Replaces: W11444043)			Immediately	$ 60.08
13	W11502236		Strap, Door   (Replaces: W11379944)			Immediately	$ 27.68
14	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 8.24
15	WPW10316950		Frame, Glass   (Replaces: W10316950)			Immediately	$ 90.09
16	WPW10299227		Hinge, Door (passive)   (Replaces: W10299227)			Immediately	$ 70.74
17	WPW10278991		Insulation, Door Strip   (Replaces: W10278991)			Immediately	$ 101.37
18	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
	W10761014		Trim, Door Side (black, Right)   (Replaces: W10746435)			Immediately	$ 72.96

    View Diagram in Separate Window       Print Part List
