Burner Box And Griddle Parts


Chassis Parts (48 In)


Cooktop, Burner And Grate Parts


Internal Oven Parts (18 In)


Internal Oven Parts (30 In)


Optional Parts (not Included)


Oven Door Parts (18 In)


Oven Door Parts (30 In)


Oven Parts (18 In)


Oven Parts (30 In)


Venting Parts

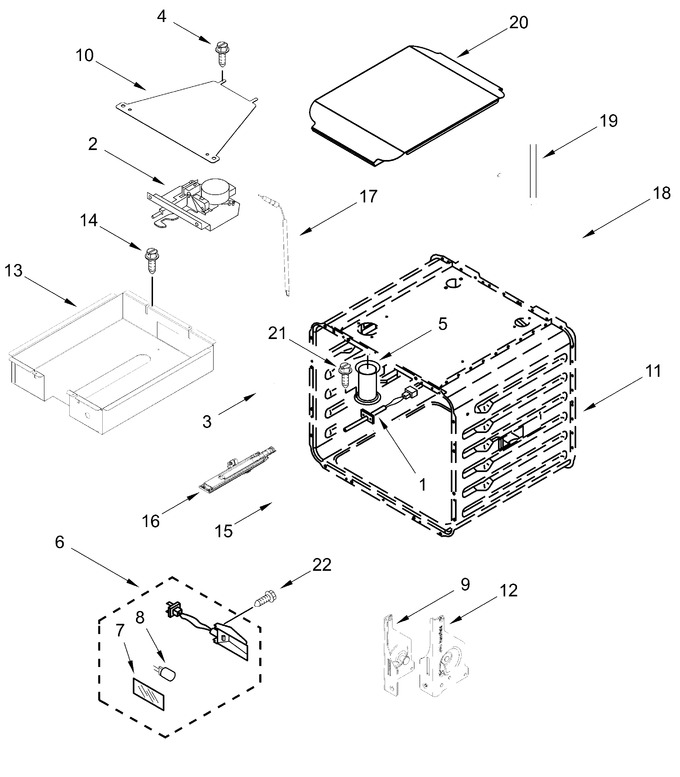

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10859573		Probe, Sensor   (Replaces: W10622170)			Immediately	$ 133.83
2	W11029221		Latch, Motorized   (Replaces: W10830016)			Immediately	$ 327.65
3	WPW10351278		Bumper And Screw   (Replaces: W10351278)				$ 11.01
4	7101P42660		Screw		Appelez-nous	-
5	W10145743		Tube, Vent		Appelez-nous	-
6	W11233684		Oven Light Assembly   (Replaces: W11223932)				$ 111.33
7	W10169756		Lens, Light				$ 42.19
8	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 47.38
9	ARI8F73C283CB1A0CC3E053DB4C6CDD3B07		Receiver, Hinge (not Serviced)		Appelez-nous	-
10	W10160858		Cover, Latch				$ 76.94
11	ARID977495C9905E1411E0312A526DED125		Liner, Oven (not Serviced)		Appelez-nous	-
12	ARI8F73C283CB1A0CC3E053DB4C6CDD3B07		Receiver, Hinge (not Serviced)		Appelez-nous	-
13	W10145651		Support, Bake Pan		Appelez-nous	-
14	WP12992902		Screw   (Replaces: 12992902)				$ 11.91
15	W10308041		Bracket, Bake Burner (18 In Cavity)		Appelez-nous	-
16	W10878505		Burner, Bake W/o Spreader			Immediately	$ 221.07
17	W11355922		Electrode, Bake   (Replaces: W11205400)			Immediately	$ 70.19
18	W10308040		Bracket, Bake Burner		Appelez-nous	-
19	W10145706		Tube, Bake				$ 202.86
20	W11504377		Cover, Bake   (Replaces: W11211936)				$ 218.40
21	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
22	4449748		Screw				$ 14.23
	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 8.36
	W11688581		Insulation, Bottom   (Replaces: W10299355)		Appelez-nous	-
	W11688776		Insulation, Back (18 In)   (Replaces: W10299353)		Appelez-nous	-
	W11688744		Insulation, Wrap (18 In)   (Replaces: W10282820)		Appelez-nous	-
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
