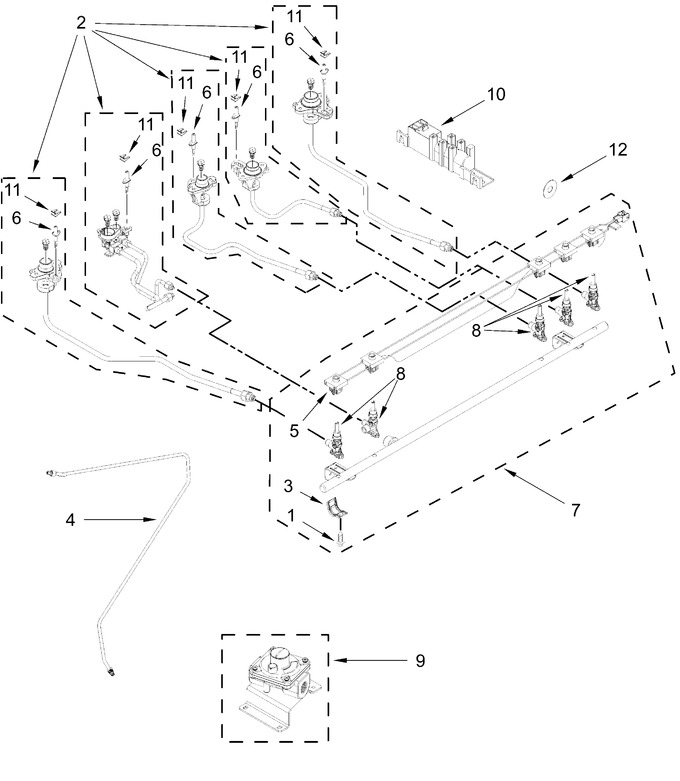

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11577790 | Screw |
|
- | |||||
| 2 | W11186511 | Holder Assembly, Gas Orifice (19k) |
|
Immediately | $ 120.00 | ||||
| 3 | W10949105 | Bracket, Saddle Valve |
|
$ 22.75 | |||||
| 4 | W10552945 | Tube, Supply |
|
$ 94.24 | |||||
| 5 | W11596366 | Harness, Spark Switch |
|
$ 101.77 | |||||
| 6 | W11675301 | Electrode, Burner (Replaces: W10898387) |
|
Immediately | $ 35.31 | ||||
| 7 | W11602206 | Manifold Assembly |
|
Immediately | $ 319.10 | ||||
| 8 | W11593170 | Valve, Gas (dual) |
|
$ 103.41 | |||||
| 9 | W10661850 | Regulator And Bracket, Assembly |
|
$ 131.25 | |||||
| 10 | W11703692 | Spark Module (Replaces: W11350452) |
|
Immediately | $ 96.65 | ||||
| 11 | W11684564 | Electrode, Spring (Replaces: W10827923) |
|
Immediately | $ 12.65 | ||||
| 12 | W11768651 | Seal, Switch Shaft (Replaces: W11507167) |
|
$ 20.30 | |||||
| W11620677 | Valve, Gas (Replaces: W11511824) |
|
$ 70.32 | ||||||
| W11620675 | Valve, Gas (Replaces: W11511818) |
|
Immediately | $ 70.32 | |||||
| W11186508 | Orifice, Assembly (5k) |
|
$ 77.55 | ||||||
| W11186517 | Holder Assembly, Gas Orifice (8k) |
|
$ 81.78 | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| ARI7A67B14AEA62F6D2A04BCF7D52CA12EE | (center) |
|
- | ||||||
| ARI02A2D02EE64F6B7820BBC4A10A38B319 | (right Rear, Center) |
|
- | ||||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| ARI59533660F9AB0B0BC7E501CA04F08592 | (right Front, Center) |
|
- | ||||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| W11620676 | Valve, Gas (Replaces: W11511819) |
|
$ 70.32 | ||||||
| WPW10182767 | Tie, Manifold Wire (Replaces: W10182767) |
|
$ 7.30 | ||||||
| W11666003 | Electrode, Burner (Replaces: W10669525) |
|
$ 48.41 | ||||||
| W11643126 | Electrode, Burner (Replaces: W10669524) |
|
Immediately | $ 38.01 | |||||
| W11661897 | Electrode, Burner (Replaces: W10669523) |
|
$ 48.36 | ||||||
| W11436985 | Lp Conversion Kit (burners) (Replaces: W11397194) |
|
Immediately | $ 46.55 | |||||
| W11186520 | Holder Assembly, Gas Orifice (9.2k) |
|
$ 82.49 | ||||||
| W11186524 | Holder Assembly, Gas Orifice (15k) |
|
$ 82.16 |
