Burner Box And Griddle Parts


Chassis Parts (48 In)


Cooktop, Burner And Grate Parts


Internal Oven Parts (18 In)


Internal Oven Parts (30 In)


Optional Parts (not Included)


Oven Door Parts (18 In)


Oven Door Parts (30 In)


Oven Parts (18 In)


Oven Parts (30 In)


Venting Parts

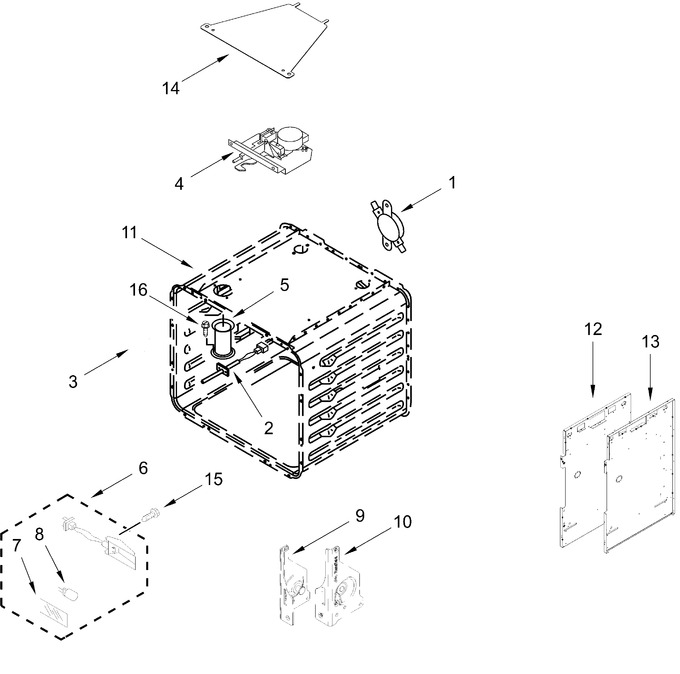

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 111.84
2	W10859573		Probe, Sensor   (Replaces: W10622170)			Immediately	$ 133.83
3	WPW10351278		Bumper And Screw   (Replaces: W10351278)				$ 11.01
4	W11029221		Latch, Motorized   (Replaces: W10830016)			Immediately	$ 327.65
5	W11318343		Tube, Vent   (Replaces: W11290663)				$ 105.43
6	W11233684		Oven Light Assembly   (Replaces: W11223932)				$ 111.33
7	W10169756		Lens, Light				$ 42.19
8	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 47.38
9	ARI8F73C283CB1A0CC3E053DB4C6CDD3B07		Receiver, Hinge (not Serviced)		Appelez-nous	-
10	ARI8F73C283CB1A0CC3E053DB4C6CDD3B07		Receiver, Hinge (not Serviced)		Appelez-nous	-
11	ARID977495C9905E1411E0312A526DED125		Liner, Oven (not Serviced)		Appelez-nous	-
12	W11750310		Retainer, Left Side Chassis   (Replaces: W11683297)		Appelez-nous	-
13	W11750312		Retainer, Right Side Chassis   (Replaces: W11683296)		Appelez-nous	-
14	W10160858		Cover, Latch				$ 76.94
15	4449748		Screw				$ 14.23
16	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 8.36
	W11553224		Insulation, Back, (30 In)   (Replaces: W10282818)				$ 107.63
	W11661177		Insulation, Wrap (30 In)   (Replaces: W10282810)				$ 162.50
	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
