Basket And Tub Parts

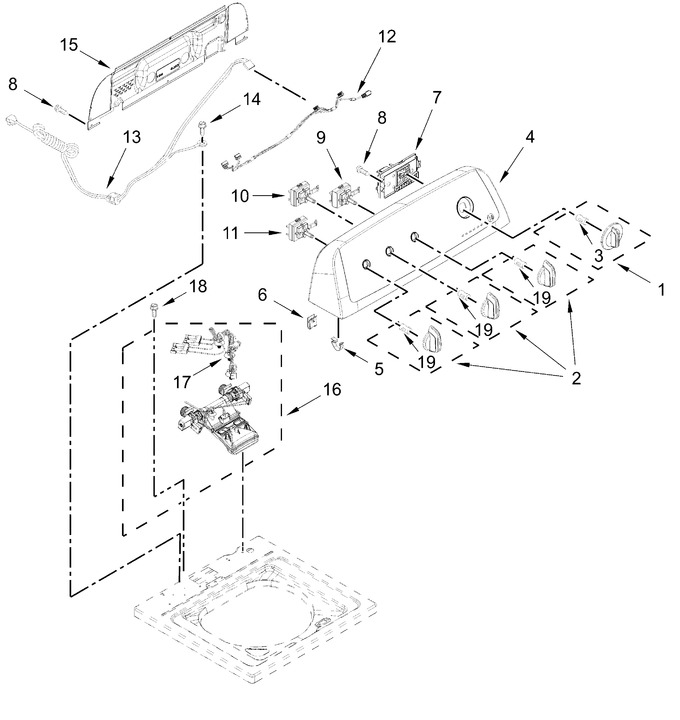

Controls And Water Inlet Parts
Gearcase, Motor And Pump Parts
Optional Parts (not Included)
Top And Cabinet Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11708423 | Knob, Large (Replaces: W11677925) |
|
Immediately | $ 31.97 | ||||
| 2 | W11625514 | Knob, Small (Replaces: W11398762) |
|
Immediately | $ 36.87 | ||||
| 3 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 4 | W11771783 | Console Assembly (Replaces: W11755682) |
|
- | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 6 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 8.13 | |||||
| 7 | W11607637 | Control Unit Assembly, Machine And Motor (Replaces: W11578563) |
|
Immediately | $ 310.49 | ||||
| 8 | W11685943 | Screw (Replaces: W10660565) |
|
$ 14.97 | |||||
| 9 | WPW10414398 | Switch, Rotary Encoder (4 Position) (Replaces: W10414398) |
|
$ 199.56 | |||||
| 10 | W11168256 | Switch, Rotary Encoder (2 Position) (Replaces: W10414381) |
|
Immediately | $ 219.11 | ||||
| 11 | W10859568 | Switch, Rotary Encoder (5 Position) (Replaces: W10414411) |
|
Immediately | $ 188.32 | ||||
| 12 | W10694671 | Harness, Upper |
|
$ 190.60 | |||||
| 13 | W10850133 | Cord, Power (Replaces: W10711784) |
|
Immediately | $ 135.03 | ||||
| 14 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 15 | W10409320 | Panel, Console Rear Cover |
|
$ 263.79 | |||||
| 16 | W11210463 | Inlet Assembly, Water (Replaces: W11101906) |
|
Immediately | $ 136.45 | ||||
| 17 | W10701401 | Harness, Valve |
|
$ 178.13 | |||||
| 18 | WPW10213953 | Screw (Replaces: W10213953) |
|
Immediately | $ 7.55 | ||||
| 19 | WP688805 | Clip, Spring (Replaces: 688805) |
|
Immediately | $ 8.20 |
