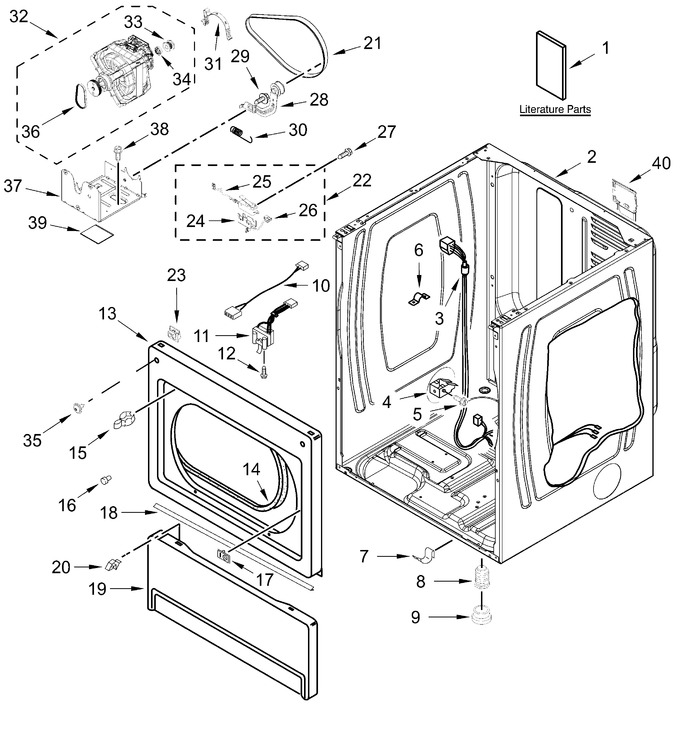

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARIF3B42C015092609901FE1334C9EA977A | Literature Parts (located Behind Toe Panel) |
|
- | |||||
| 2 | W11417441 | Cabinet (white) (Replaces: W11161907) |
|
$ 419.21 | |||||
| 3 | W10807486 | Harness, Upper/lower |
|
- | |||||
| 4 | 3391846 | Clip, Front Panel |
|
$ 21.15 | |||||
| 5 | 681615 | Screw (Replaces: 3391915) |
|
$ 13.88 | |||||
| 6 | WP98997 | Clip (Replaces: 98997) |
|
$ 11.09 | |||||
| 7 | WPW10291934 | Clip (Replaces: W10291934) |
|
$ 7.75 | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WP3391943 | Boot, Foot (Replaces: 3391943) |
|
$ 7.82 | |||||
| 10 | 8283298 | Jumper, Door Switch |
|
$ 83.73 | |||||
| 11 | WPW10237959 | Switch, Door (Replaces: W10237959) |
|
Immediately | $ 55.64 | ||||
| 12 | WP3395530 | Screw (Replaces: 697773) |
|
$ 7.70 | |||||
| 13 | W10242810 | Panel, Front (white) (Replaces: W10192882) |
|
$ 361.07 | |||||
| 14 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 15 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 16 | 693152 | Bumper |
|
$ 10.96 | |||||
| 17 | W10521429 | Cover Strike (white) |
|
- | |||||
| 18 | W10576519 | Seal, Deflector |
|
- | |||||
| 19 | WP3406797 | Panel, Toe (white) (Replaces: 697215) |
|
$ 238.33 | |||||
| 20 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 8.45 | ||||
| 21 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 44.00 | ||||
| 22 | 279782 | Switch Assembly (Replaces: 8066134) |
|
Immediately | $ 54.44 | ||||
| 23 | WP345670 | Lock Top (Replaces: 345670) |
|
Immediately | $ 7.70 | ||||
| 24 | WP8066120 | Lever, Belt Switch (Replaces: 8066120) |
|
Immediately | $ 33.11 | ||||
| 25 | 279782 | Switch, Belt (Replaces: 3394881) |
|
Immediately | $ 54.44 | ||||
| 26 | W10167612 | Wire, Belt Switch |
|
$ 12.78 | |||||
| 27 | WP98129 | Screw (Replaces: 98129) |
|
$ 7.56 | |||||
| 28 | WPW10344193 | Pulley-idler Assembly (Replaces: W10344193) |
|
Immediately | $ 83.77 | ||||
| 29 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.02 | |||||
| 30 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 24.57 | ||||
| 31 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.83 | |||||
| 32 | W10841144 | Motor (Replaces: W10396031) |
|
Immediately | $ 234.31 | ||||
| 33 | WP8066184 | Pulley, Motor (Replaces: 3394341) |
|
Immediately | $ 51.02 | ||||
| 34 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 132.46 | ||||
| 35 | W10879744 | Screw |
|
- | |||||
| 36 | WP3405160 | Belt, Drive (blower Wheel) (Replaces: 3405160) |
|
Immediately | $ 35.23 | ||||
| 37 | WP3387118 | Bracket, Motor (Replaces: 3387118) |
|
$ 133.59 | |||||
| 38 | WP681414 | Screw (Replaces: 3390663) |
|
Immediately | $ 7.85 | ||||
| 39 | W11668653 | Panel, Dampening (Replaces: W10836097) |
|
$ 29.48 | |||||
| 40 | W11417441 | Cover, Terminal (Replaces: W11378153) |
|
$ 419.21 | |||||
| W10470674 | Kit, 4-way Venting |
|
Immediately | $ 76.65 | |||||
| ARI49056CBCEA95B374289EE824637D0633 | Dryer Exhaust Kit Not Included |
|
- | ||||||
| W11647897 | Installation Instructions |
|
- | ||||||
| W11651037 | Tech Sheet |
|
- |
