Chassis Parts
Cooktop Parts
Door Parts
Drawer Parts
Manifold Parts
Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

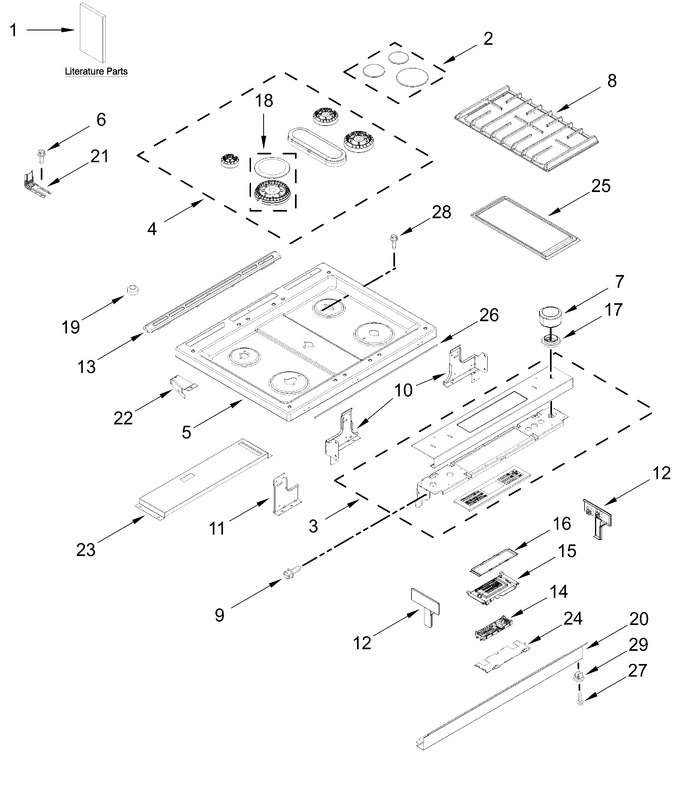

| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11834855 | Burner Cap Kit (black) (Replaces: W11367440) |
|
- | |||||
| 3 | W10913685 | Console (stainless) (Replaces: W10901118) |
|
$ 811.94 | |||||
| 4 | W11834876 | Burner Kit (set Of 5) (Replaces: W11367105) |
|
Immediately | $ 286.05 | ||||
| 5 | W11445310 | Cooktop (stainless) (Replaces: W11117940) |
|
$ 467.19 | |||||
| 6 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 7 | W10872674 | Dual, Knob (stainless) (Replaces: W10786064) |
|
Immediately | $ 59.56 | ||||
| 8 | W11241056 | Grate Kit (black, Set Of 2) (Replaces: W11188538) |
|
$ 409.88 | |||||
| 9 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 10 | W10289170 | Bracket,support (left) (Replaces: W11563529) |
|
$ 30.05 | |||||
| 11 | W10598048 | Bracket, Console (center) |
|
$ 25.73 | |||||
| 12 | W10555937 | Endcap (stainless Left) |
|
$ 67.95 | |||||
| 13 | W11170796 | Trim, Vent (stainless) (Replaces: W10636529) |
|
Immediately | $ 145.75 | ||||
| 14 | W11620583 | Control, Mrc2 (Replaces: W11541194) |
|
$ 372.78 | |||||
| 15 | W11128223 | Assembly, Display (Replaces: W10759323) |
|
Immediately | $ 501.38 | ||||
| 16 | W10555923 | Bracket, User Interface |
|
$ 107.43 | |||||
| 17 | W10814133 | Bezel (stainless) (Replaces: W10785119) |
|
Immediately | $ 113.38 | ||||
| 18 | W11443594 | Burner Kit (includes Cap And Spreader) (Replaces: W11366282) |
|
Immediately | $ 133.74 | ||||
| 19 | W11690600 | Bumper (Replaces: W10854253) |
|
Immediately | $ 14.91 | ||||
| 20 | W10743276 | Panel, Lower Console (stainless) |
|
$ 86.68 | |||||
| 21 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 23.03 | ||||
| 22 | W10162253 | Brace, Corner (left) |
|
$ 74.13 | |||||
| 23 | W11355689 | Keypad Shield |
|
$ 22.64 | |||||
| 24 | W10558372 | Bracket, Control |
|
$ 25.10 | |||||
| 25 | W10432544 | Griddle |
|
Immediately | $ 56.67 | ||||
| 26 | W11620671 | Gasket, Console (Replaces: W11512127) |
|
$ 25.12 | |||||
| 27 | W10516115 | Screw |
|
$ 14.52 | |||||
| 28 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 14.73 | ||||
| 29 | W11025100 | Grommet (Replaces: W10645947) |
|
Immediately | $ 13.16 | ||||
| W10555940 | Endcap (stainless Right) |
|
$ 67.95 | ||||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | ||||||
| W11565455 | Tech Sheet |
|
- | ||||||
| W11477346 | Quick Start Guide (english) |
|
- | ||||||
| ARIE85832542AA511D46539B872FEF29431 | (left Rear, Right Front, Right Rear) |
|
- | ||||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| W10872668 | Single, Knob (stainless) (Replaces: W10786065) |
|
Immediately | $ 106.21 | |||||
| W10162252 | Brace, Corner (right) |
|
$ 78.59 | ||||||
| ARIB2462F5426468C5AE629831619D23DA6 | (right Front, Right Rear, Left Rear, Center) |
|
- | ||||||
| W11563527 | Bracket, Support (right) |
|
- | ||||||
| W11175842 | Suppressor (Replaces: W10653092) |
|
Immediately | $ 105.04 | |||||
| W10580316 | Harness, Bake Drawer |
|
Immediately | $ 185.69 | |||||
| W11176109 | Harness, Display (Replaces: W10598169) |
|
Immediately | $ 224.96 | |||||
| W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 53.35 | |||||
| W11457083 | Harness, Main |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | ||||||
| W11477345 | Use And Care Guide |
|
- |
