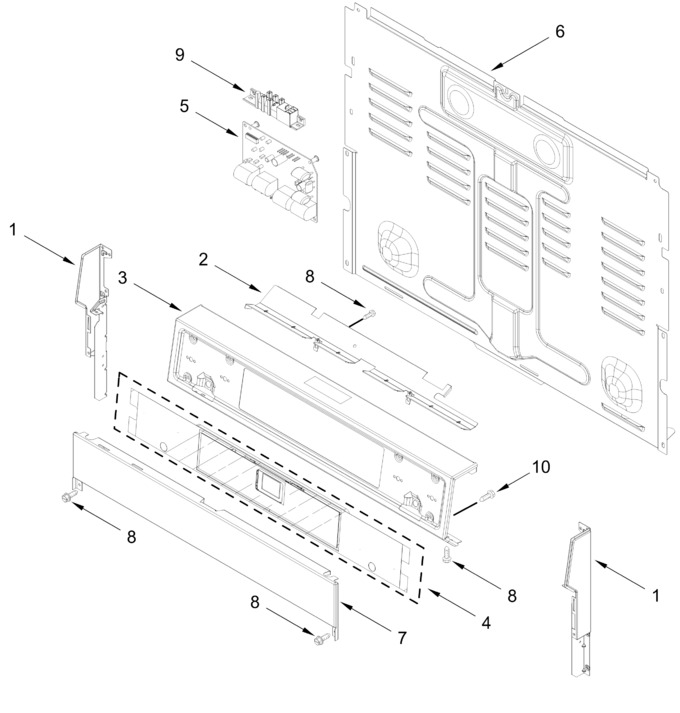

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11726987 | Console, Endcap (white Left) (Replaces: W11625422) |
|
- | |||||
| 2 | W11747326 | Shield, Heat (Replaces: W11736649) |
|
- | |||||
| 3 | W11726986 | Panel, Control (white) (Replaces: W11371987) |
|
- | |||||
| 4 | W11839349 | User Interface (Replaces: W11400084) |
|
- | |||||
| 5 | W10898291 | Module, Spark Dsi (Replaces: W10818365) |
|
Immediately | $ 365.64 | ||||
| 6 | W11727014 | Cover, Upper Rear (Replaces: W11393669) |
|
- | |||||
| 7 | W11726990 | Panel, Lower (white) (Replaces: W11625439) |
|
$ 78.74 | |||||
| 8 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 9 | W11703692 | Spark Module (Replaces: W11350452) |
|
Immediately | $ 96.65 | ||||
| 10 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| W11726989 | Console, Endcap (white Right) (Replaces: W11625418) |
|
- |
