SELECT A DIAGRAM

Bulkhead Parts


Cabinet Parts


Optional Parts (not Included)


Top And Console Parts

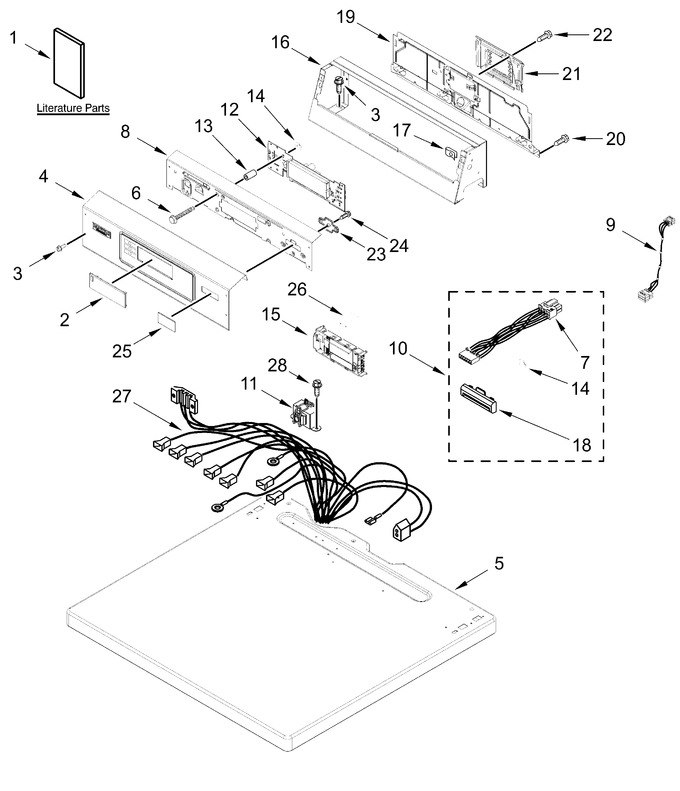

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11637765		Cover, Display   (Replaces: W11565137)				$ 69.59
3	WPW10131119		Screw   (Replaces: W10386302)				$ 7.30
4	W11101036		Fascia   (Replaces: W10845284)				$ 546.91
5	WPW10136704		Top (white)   (Replaces: W10136704)				$ 273.45
6	W11117300		Screw   (Replaces: W10137322)		Appelez-nous	-
7	W11760234		Card Reader, Harness   (Replaces: W11512926)		Appelez-nous	-
8	W11760232		Bracket, Control   (Replaces: W11407433)		Appelez-nous	-
9	W11743888		Harness, Ui   (Replaces: W11554061)		Appelez-nous	-
10	W11569393		Card Reader, Conversion Kit		Appelez-nous	-
11	WPW10131839		Transformer   (Replaces: W10131839)			Immediately	$ 140.23
12	W11759236		Control, User Interface   (Replaces: W11456058)		Appelez-nous	-
13	W11117166		Standoff, Circuit Board   (Replaces: W10133514)		Appelez-nous	-
14	WPW10139046		Nut   (Replaces: W10139046)				$ 9.23
15	W11743884		Control Board   (Replaces: W11487487)		Appelez-nous	-
16	W11124005		Console				$ 238.42
17	WPW10131123		U-nut   (Replaces: W10131123)				$ 8.10
18	WPW10131115		Bezel   (Replaces: W10131115)				$ 8.90
19	W11760235		Panel, Rear (console)   (Replaces: W11447701)		Appelez-nous	-
20	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
21	WPW10119283		Cover, Terminal Block   (Replaces: W10286180)				$ 134.77
22	W11808444		Screw   (Replaces: 98139)		Appelez-nous	-
23	W11775266		Retainer, Card Reader Cover   (Replaces: W10137770)		Appelez-nous	-
24	3400618		Screw				$ 67.94
25	W11164066		Cover, Card Reader   (Replaces: W10137769)		Appelez-nous	-
26	W11760233		Jumper, Switch Service/vault   (Replaces: W11512927)		Appelez-nous	-
27	W11114148		Harness, Main		Appelez-nous	-
28	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 8.25
	W11463414		Installation Instructions, Card Reader		Appelez-nous	-
	W11696096		Installation Instructions		Appelez-nous	-
	W11692451		Tech Sheet		Appelez-nous	-
