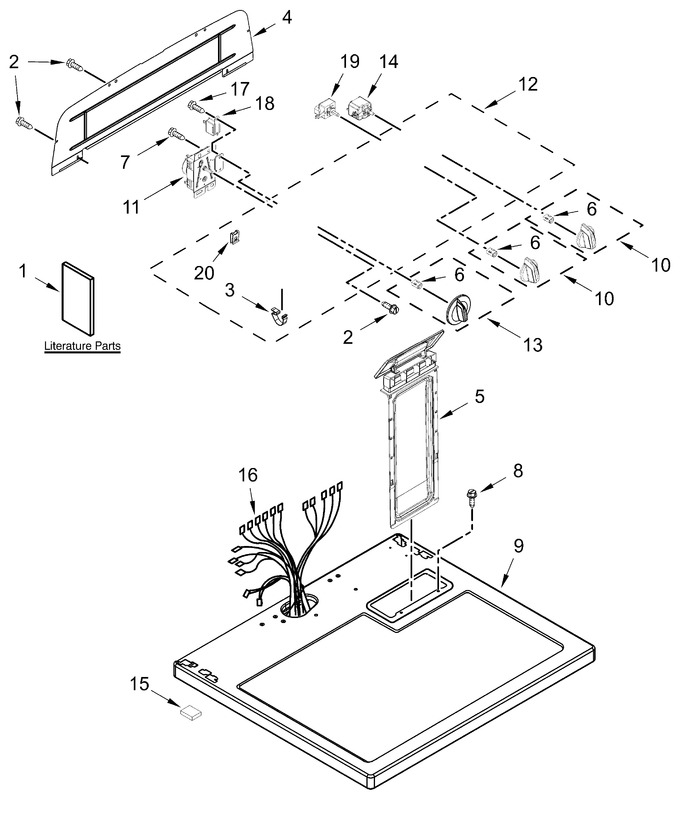

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
3	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
4	WPW10416486		Panel, Rear Console   (Replaces: W10416486)				$ 132.39
5	W11778253		Lint Screen   (Replaces: W11538107)			Immediately	$ 54.63
6	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
7	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
8	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
9	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 349.25
10	W11625514		Push To Start Knob (white)   (Replaces: W11398762)			Immediately	$ 36.87
11	WPW10436303		Assembly, Timer   (Replaces: W10436303)			Immediately	$ 197.69
12	W11771785		Console Assembly (white)   (Replaces: W11755685)		Appelez-nous	-
13	W11708423		Timer Knob Assembly (white)   (Replaces: W11677925)			Immediately	$ 31.97
14	WPW10446920		Switch, Push To Start   (Replaces: W10446920)			Immediately	$ 88.11
15	3389682		Spacer, Toe Panel				$ 9.23
16	W10450289		Harness, Main		Appelez-nous	-
17	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
18	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
19	W11661755		Switch, Rotary   (Replaces: W10420747)				$ 34.70
20	W11213336		U-nut   (Replaces: W10298336)				$ 8.13
	W11691173		Owners Manual		Appelez-nous	-
	W10185985		Wiring Diagram		Appelez-nous	-
	W11755396		Quick Start Guide		Appelez-nous	-
