Basket And Tub Parts
Console And Water Inlet Parts
Gearcase, Motor And Pump Parts
Optional Parts (not Included)
Top And Cabinet Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

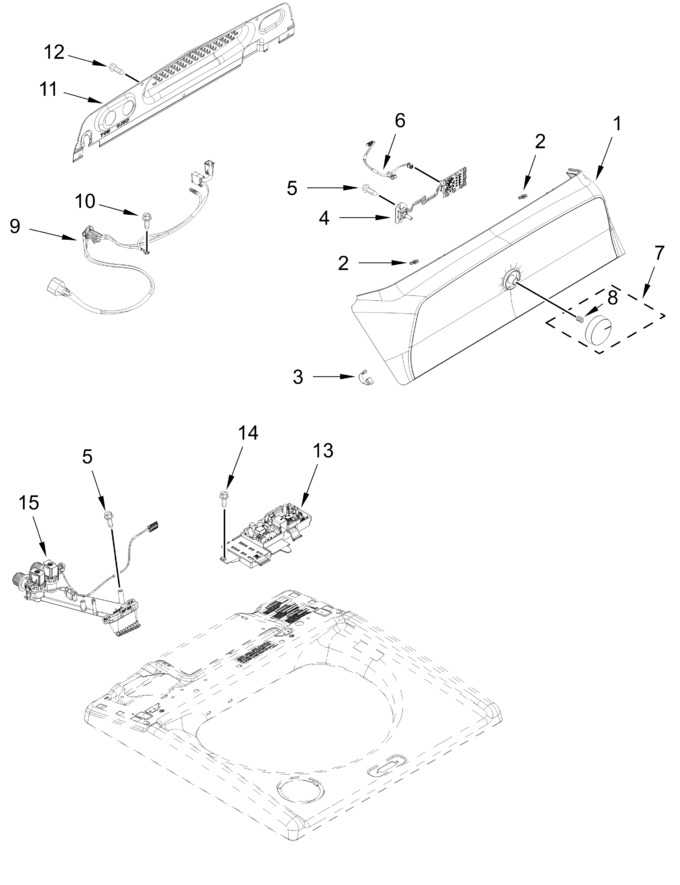

| 1 | W11662366 | Console Assembly (Replaces: W11391560) |
|
$ 278.94 | |||||
| 2 | W11213336 | U-nut (Replaces: W10298336) |
|
$ 8.13 | |||||
| 3 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.59 | ||||
| 4 | W11627516 | Assembly, Encoder (Replaces: W11557402) |
|
Immediately | $ 321.70 | ||||
| 5 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 6 | W11665945 | Harness, Hmi (Replaces: W11335101) |
|
$ 22.94 | |||||
| 7 | W11662669 | Knob Assembly (Replaces: W11430050) |
|
Immediately | $ 35.87 | ||||
| 8 | WP688805 | Clip, Spring (Replaces: 688805) |
|
Immediately | $ 8.20 | ||||
| 9 | W11513259 | Power Cord Assembly (Replaces: W11335102) |
|
Immediately | $ 42.33 | ||||
| 10 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 11 | W10611544 | Panel, Console Rear Cover |
|
$ 341.23 | |||||
| 12 | W11685943 | Screw (Replaces: W10660565) |
|
$ 14.97 | |||||
| 13 | W11742939 | Control Unit Assembly, Machine And Motor (Replaces: W11725661) |
|
Immediately | $ 430.16 | ||||
| 14 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 15 | W11513255 | Water Inlet Assembly (complete) (Replaces: W11385821) |
|
Immediately | $ 99.13 |
